Description

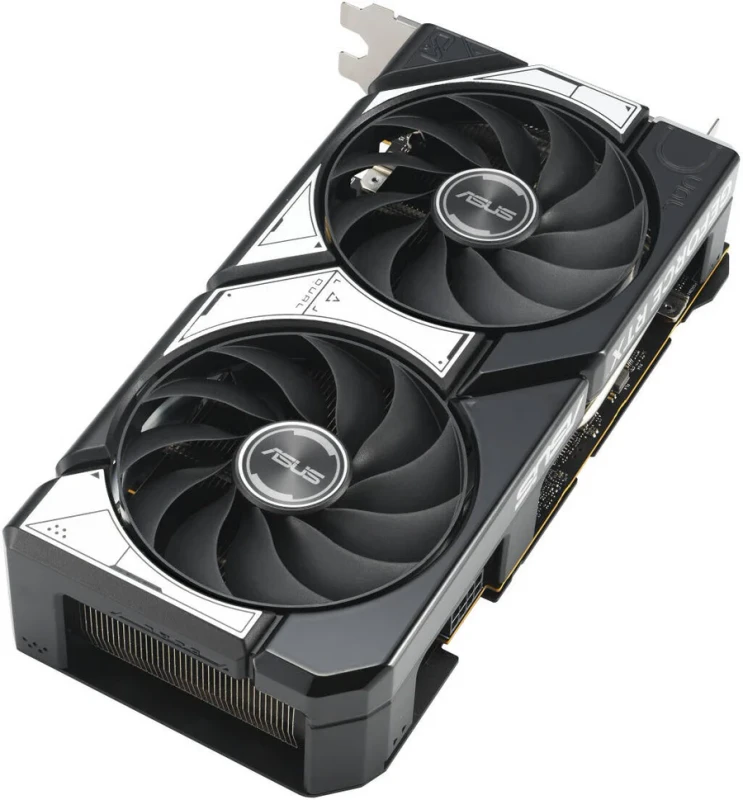

The ASUS Dual RTX 5060 OC Edition is a compact, high-performance GPU built on NVIDIA’s latest architecture. With 8GB of ultra-fast GDDR7 memory and PCIe 5.0 support, it delivers excellent 1080p and capable 1440p gaming performance. It features dual Axial-tech fans, enhanced thermal efficiency, and a space-saving 2.5-slot design for wide case compatibility.
Key Features
- 8GB GDDR7 memory on a 128-bit interface
- PCI Express 5.0 for maximum data bandwidth
- OC Edition with boosted clock speeds up to 2565 MHz
- 3840 CUDA cores for efficient graphics and compute tasks
- Supports DLSS 4 and advanced ray tracing
- Dual Axial-tech fan design for optimal cooling
- Compact 2.5-slot design fits smaller cases
- Supports up to 8K resolution with 4 display outputs
Specifications
| Feature | Details |
|---|---|
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 3840 |
| Video Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | 28 Gbps |
| Boost Clock | Up to 2565 MHz (OC Mode) |
| Interface | PCIe 5.0 x16 |
| Display Outputs | 3x DisplayPort 2.1, 1x HDMI 2.1 |
| Max Resolution | 7680 x 4320 (8K) |
| Cooling System | Dual Axial-tech fans |
| Slot Size | 2.5-slot |
| Idle Fan Mode | Yes (0 dB) |
| Power Connector | 1x 8-pin |
| TDP | ~145W |
| Recommended PSU | 550W minimum |
| Max Displays | Up to 4 |
