Product Description

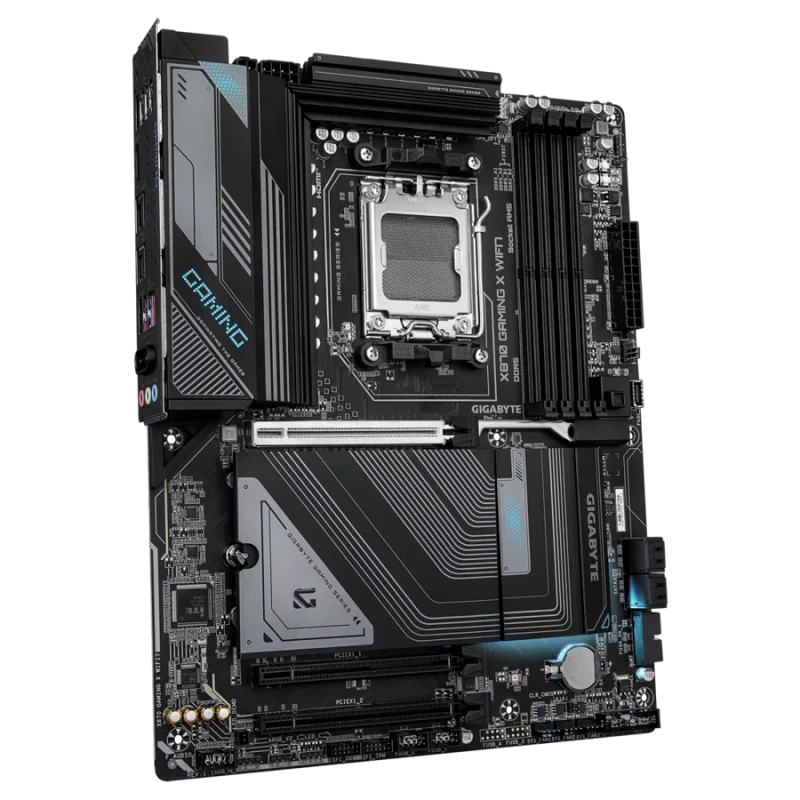

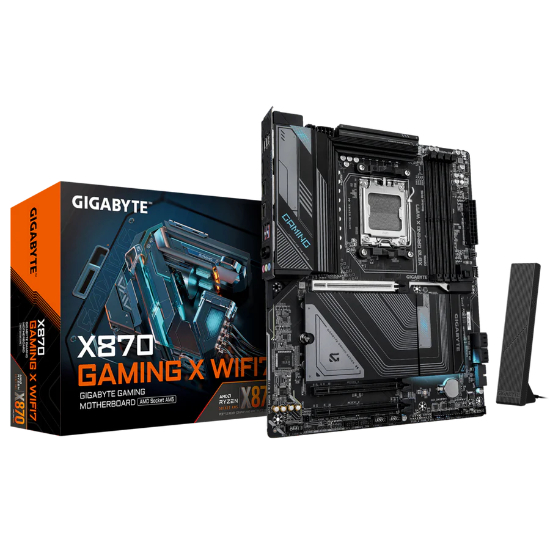

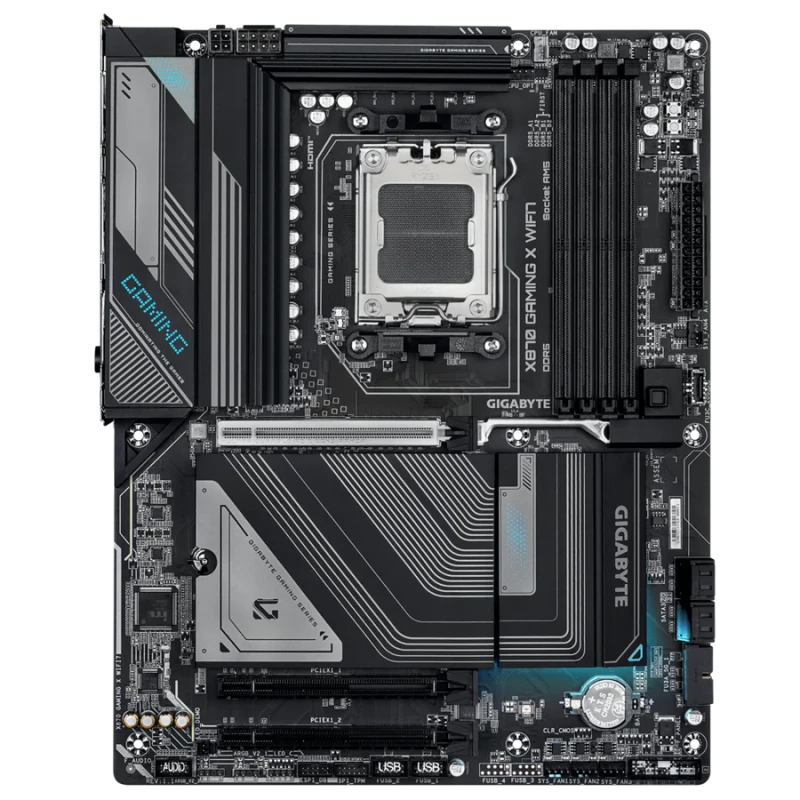

An ATX motherboard based on the AMD X870 chipset with AM5 socket, designed for Ryzen™ 7000/8000/9000 Series CPUs. Features full DDR5 support, advanced power delivery, high-speed storage and networking (PCIe?5.0, Wi?Fi?7, USB4), and DIY-friendly build features—ideal for gamers and creators requiring a robust, future-ready platform.

Key Features

• CPU & Memory

Supports Ryzen™ 7000/8000/9000 AM5 processors

4× DDR5 DIMM slots with AMD EXPO profiles

• Power & VRM

16+2+2 digital VRM on 6?layer PCB with 2× copper and premium components

Robust 8+8-power stage design via parallel VRM architecture

• Storage & Expansion

3× M.2 slots (1× PCIe?5.0 x4, 2× PCIe?4.0 x4)

1× PCIe?5.0 x16 slot (reinforced UD Slot X)

2× PCIe?3.0 x1 slots

• Cooling & Heatsinks

VRM Thermal Armor Advanced with integrated I/O shield

M.2 Thermal Guard extension

Smart Fan?6—6 PWM/DC fan headers, dual-curve fan modes

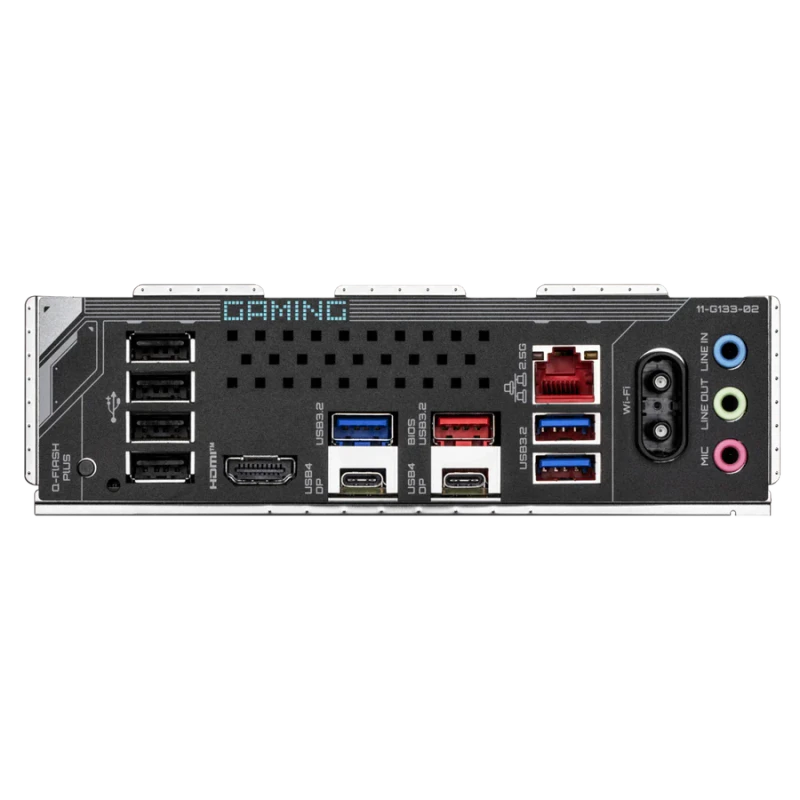

• Connectivity

Wi?Fi 7 with ultra?high gain antenna

2.5?GbE LAN

Dual USB4 Type?C (40?Gb/s with DisplayPort Alt Mode)

HDMI output

Front-panel USB?C 20?Gb/s, USB 3.2 Gen 2 & Gen 1, USB 2.0

• DIY & Usability

WIFI EZ?Plug antenna connector

EZ?Latch Plus (PCIe/M.2 quick-release system)

EZ?Debug LED, onboard power/reset buttons, Q-Flash Auto?Scan

• Audio & Lighting

8?channel Realtek HD audio with high-end capacitors

RGB Fusion support: 1× RGB header, 3× addressable headers

• Performance Boost

AORUS AI Snatch: one-click AI-assisted DDR5 and memory tuning

Specifications
