Description
Product Description

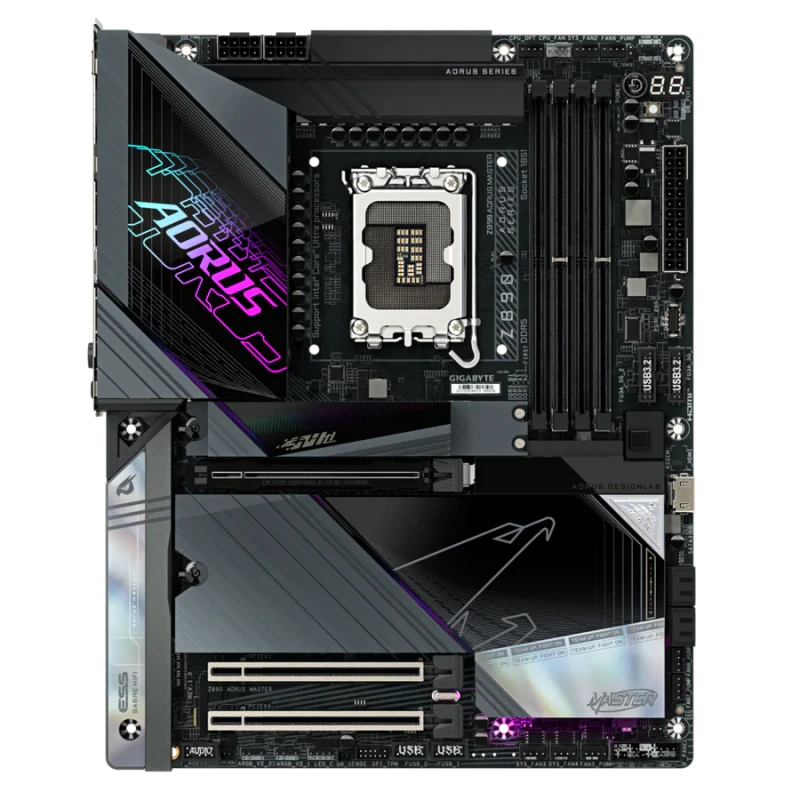

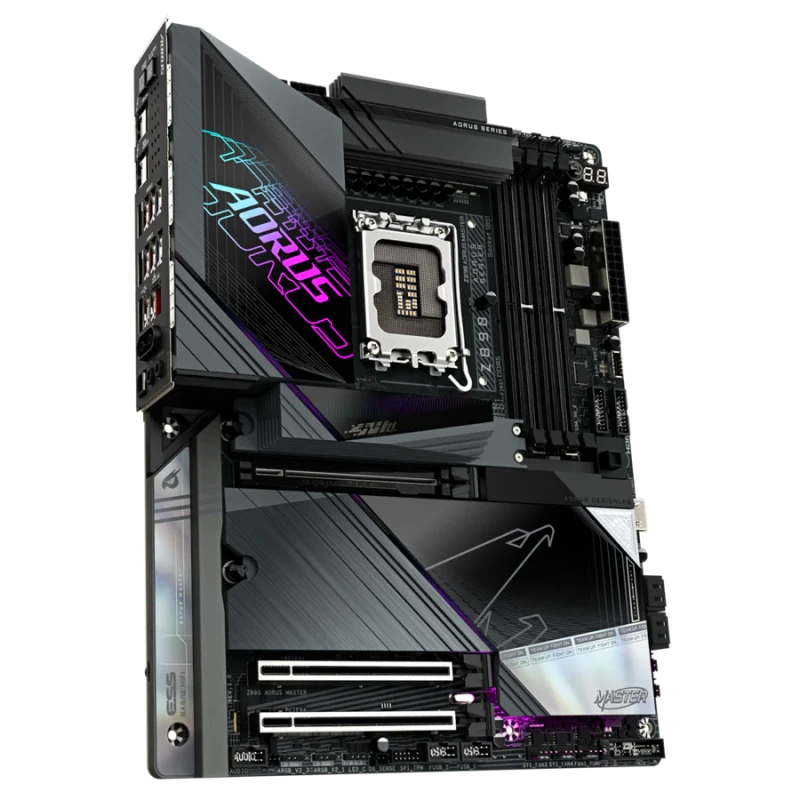

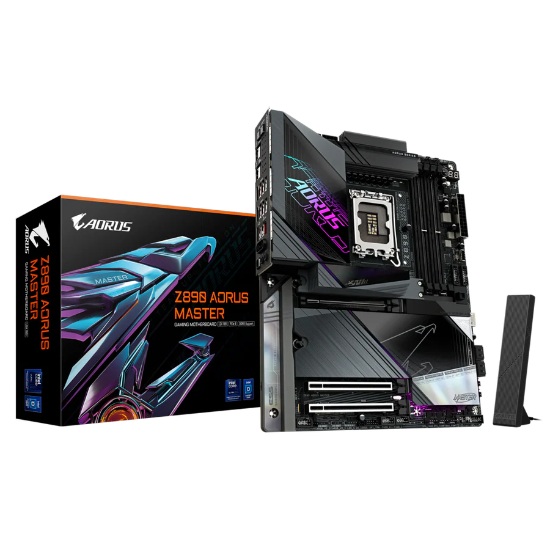

Flagship ATX motherboard supporting Intel Core Ultra (Series 2) processors via LGA?1851 socket. It provides elite performance with DDR5 memory optimizations, PCIe?5.0 expansion, dual Thunderbolt 4, Wi?Fi?7, and 10GbE LAN—all packaged in a robust and thermally efficient design.
Key Features
-
AI-enhanced DDR5 (D5 Bionic Corsa): AI-driven PCB design and memory tuning boost memory speed and signal integrity.
-
Power Delivery: Digital 20+1+2 VRM phases for stable high-core CPU performance.
-
Expansion & Storage:
-
Dual PCIe?5.0 x16 slots (multi-GPU ready)
-
Four M.2 slots supporting PCIe?5.0 & 4.0 speeds
-
-

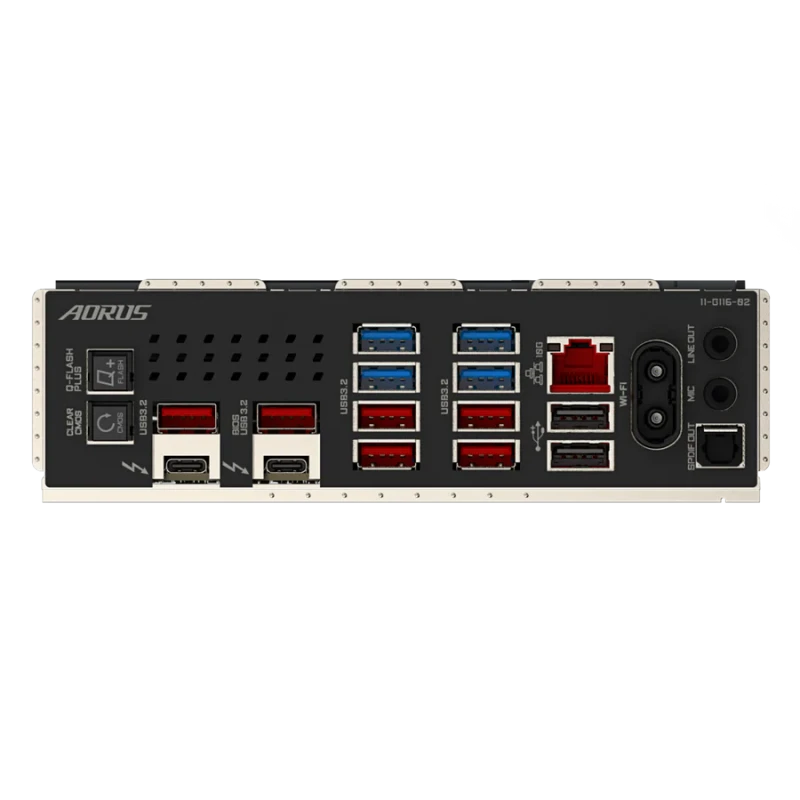

Connectivity:
-
Dual Thunderbolt?4 Type?C with DP?Alt
-

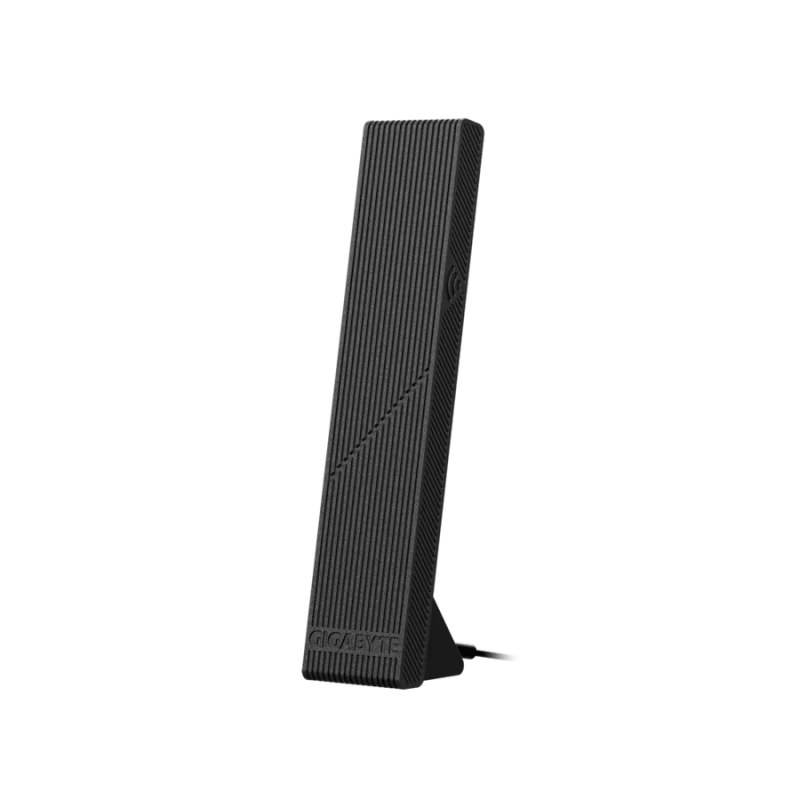

Wi?Fi?7 with ultra-high-gain antenna
-
10GbE LAN
-
-
Audio: ESS SABRE DAC paired with Realtek ALC1220 and audiophile-grade capacitors.
-
Thermal Design:
-
VRM Thermal Armor Advanced
-
M.2 Thermal Guard XL
-
DDR Wind Blade cooling for memory
-
-
DIY-Friendly:
-
Wi?Fi EZ?Plug, PCIe & M.2 EZ?Latch Plus
-
Q-Flash, clear CMOS, and onboard debug tools
-
Specifications
| Feature | Specification |
|---|---|
| CPU Socket | LGA 1851 (Intel Core Ultra Series 2) |
| Memory | 4× DDR5 slots with AI-tuned performance (XMP support) |
| VRM | 20+1+2 digital phases with AI-derived PCB layout |
| PCIe Slots | 2× PCIe?5.0 x16 (multi-GPU capable) |
| M.2 Slots | 4× M.2 (PCIe?5.0/4.0) |
| Networking | Wi?Fi?7 (ultra-high-gain), 10GbE LAN |
| Thunderbolt 4 | Dual Type-C ports with DP?Alt mode |
| Audio | ESS SABRE DAC + ALC1220 with audiophile-grade caps |
| Cooling | VRM armor, M.2 XL thermal guard, DDR Wind Blade |
| DIY Features | EZ-Latch slots, Wi?Fi EZ-Plug, Q-Flash, onboard buttons & debug LEDs |
| Form Factor | ATX |
| Durability | Ultra-dual PCIe armor, reinforced build |
