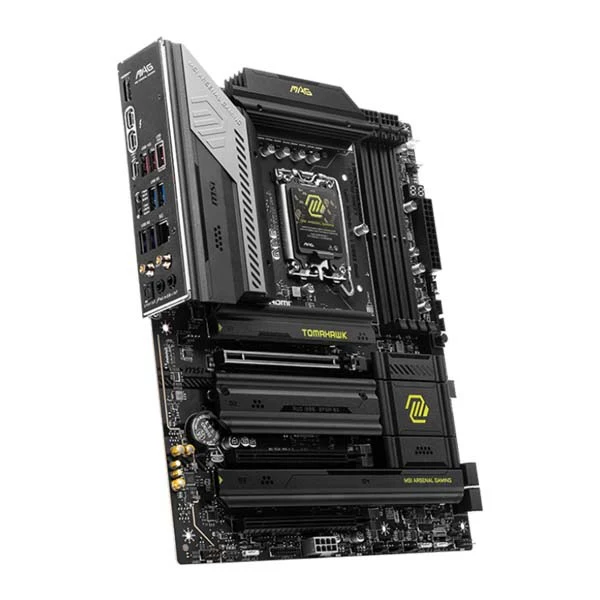

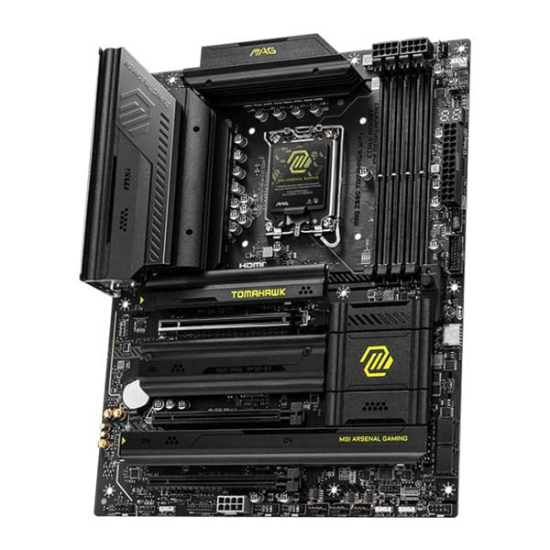

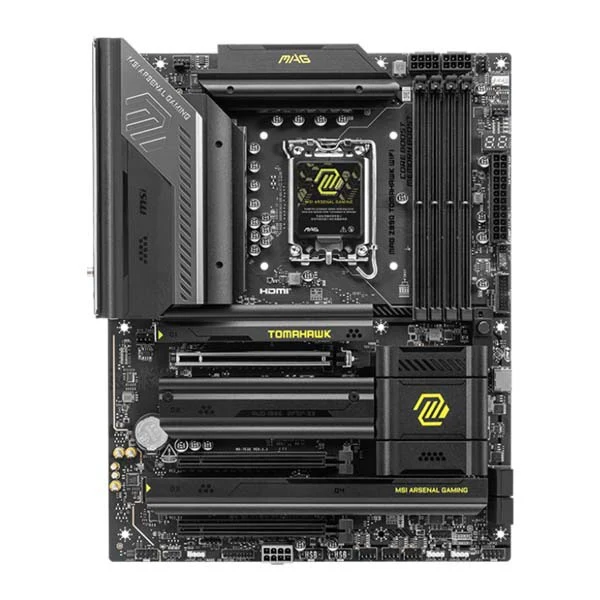

ATX Intel Z890 motherboard for LGA1851. Built for Intel Core Ultra Series 2 desktop CPUs. Four-DIMM DDR5 up to 256 GB. One PCIe 5.0 x16 graphics slot. Four M.2 for NVMe including one PCIe 5.0 x4. Wi-Fi 7 and 5 GbE LAN. Dual Thunderbolt 4 Type-C with DisplayPort 2.1 over USB-C. HDMI 2.1 FRL up to 4K120 or 8K60 when using a CPU with integrated graphics. Black color.

Key Features

• LGA1851 support for Intel Core Ultra Series 2
• DDR5 dual-channel. 4 DIMMs. Up to 256 GB
• PCIe 5.0 x16 for GPU
• 4 × M.2. 1 × Gen5 x4 and 3 × Gen4 x4
• Wi-Fi 7 and Bluetooth 5.4
• Intel Killer E5000 5 GbE LAN
• 2 × Thunderbolt 4 Type-C with DP 2.1 over USB-C
• HDMI 2.1 FRL video output
• Audio Boost with Realtek ALC1220P and optical S/PDIF
• Front USB-C 20 Gbps with 27 W PD
• Flash BIOS Button and Clear CMOS. Pre-installed I/O shield
• EZ M.2 Shield Frozr II. EZ M.2 Clip II. EZ PCIe Release
• Extended heatsinks. Server-grade PCB with 2 oz copper

Specifications

•  Chipset: Intel Z890
•  CPU Socket / Support: LGA1851. Intel Core Ultra Series 2 desktop processors
•  Form Factor: ATX. 244 × 305 mm
•  Memory: 4 × DDR5 UDIMM. Dual-channel. Up to 256 GB. Supports XMP 3.0 and CUDIMM
•  PCIe Slots: 3 × PCIe x16 total

• • PCI_E1 up to PCIe 5.0 x16 from CPU

  • PCI_E2 up to PCIe 4.0 x4 from chipset

  • PCI_E3 up to PCIe 4.0 x4 from chipset

• M.2 (Key M): 4 slots

  • M2_1. PCIe 5.0 x4. 2260 or 2280. From CPU

  • M2_2. PCIe 4.0 x4. 2260 or 2280 or 22110. From CPU

  • M2_3. PCIe 4.0 x4. 2242 or 2260 or 2280. From chipset

  • M2_4. PCIe 4.0 x4 or SATA. 2242 or 2260 or 2280. From chipset

•  SATA: 4 × SATA 6 Gb/s
•  RAID: 0, 1, 5, 10 on SATA and NVMe
•  Graphics Outputs: 1 × HDMI 2.1 FRL up to 4K120 or 8K60. 2 × Thunderbolt 4 Type-C with DP 2.1 over USB-C. Video output requires a CPU with integrated graphics

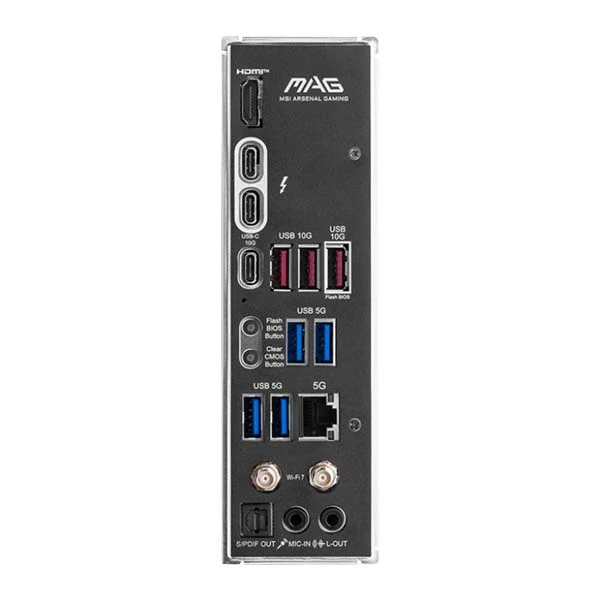

•  Rear I/O: 2 × Thunderbolt 4 USB-C. 3 × USB-A 10 Gbps. 1 × USB-C 10 Gbps. 4 × USB-A 5 Gbps. 1 × 5 GbE RJ-45. 2 × Wi-Fi antenna connectors. 2 × audio jacks. 1 × optical S/PDIF. Flash BIOS Button. Clear CMOS Button
•  Internal USB: Front USB-C 20 Gbps with 27 W PD. 1 × USB 5 Gbps header adds 2 ports. 2 × USB 2.0 headers add 4 ports
•  Networking: Intel Killer E5000 5 GbE LAN. Wi-Fi 7. Bluetooth 5.4
•  Audio: Realtek ALC1220P. 7.1-channel HD. Optical S/PDIF out
•  Power Connectors: 24-pin ATX. 2 × 8-pin CPU. 1 × 8-pin PCIe auxiliary
•  Fan/LED Headers: 1 × CPU. 1 × pump or combo. 6 × system. 1 × 4-pin RGB. 3 × 3-pin ARGB Gen2
•  Monitoring/Debug: EZ Debug LEDs. EZ Digi-Debug LED
