Description

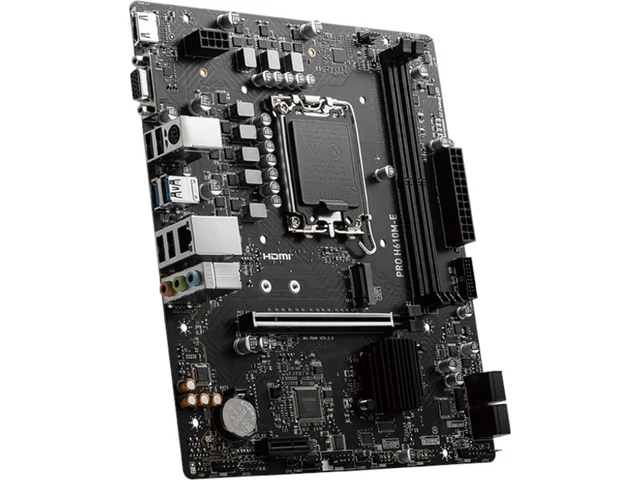

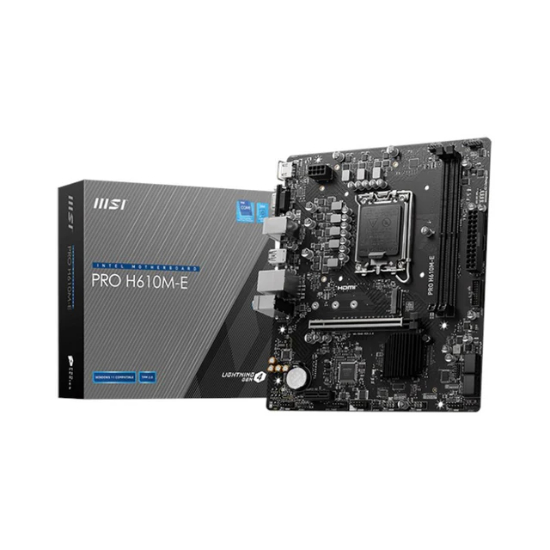

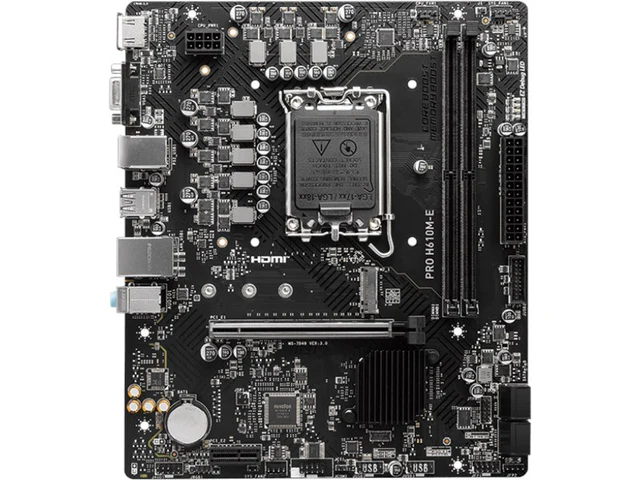

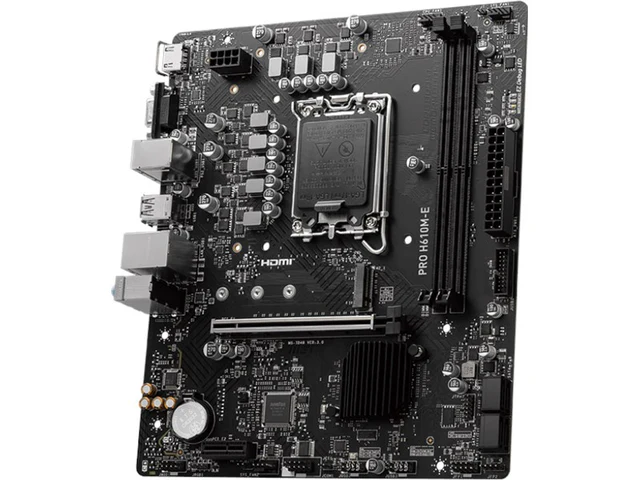

The MSI PRO H610M-E is a reliable and cost-effective Micro-ATX motherboard designed for Intel 12th and 13th Gen Core processors. Built on the Intel H610 chipset, it provides stable performance for everyday computing and productivity. With DDR5 memory support, PCIe expansion, and fast connectivity, it is a solid choice for office setups, home PCs, or entry-level gaming systems.
The MSI PRO H610M-E is a professional-grade Micro-ATX motherboard designed for stability and efficiency. With support for the latest Intel 14th, 13th, and 12th Gen Core processors on the LGA 1700 socket, and DDR5 memory up to 96GB, this board is built to handle modern workloads. It offers PCIe 4.0 graphics support, M.2 NVMe SSD compatibility, and comprehensive I/O for everyday users, offices, and system builders.
Key Features
- Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron CPUs (LGA 1700).
- DDR5 memory up to 96GB, speeds up to 5600 MHz, Intel® XMP 3.0 OC support.
- Onboard graphics output: HDMI™ 1.4 (4K @30Hz) and VGA.
- PCIe 4.0 x16 slot for discrete GPUs.
- 1x M.2 PCIe 3.0 x4/SATA slot + 4x SATA III ports.
- USB Connectivity: 4x USB 2.0 (rear), 4x USB 2.0 (front), 2x USB 5Gbps Type-A (rear), 2x USB 5Gbps Type-A (front).
- Realtek ALC897 Codec for 7.1-channel HD audio.
- Realtek RTL8111H Gigabit LAN.
- EZ Debug LED system for easy troubleshooting.
Technical Specifications
| Category | Details |
|---|---|
| Chipset | Intel® H610 |
| CPU Support | Intel® Core™ 14th, 13th, 12th Gen, Pentium® Gold, Celeron® (LGA 1700) |
| Memory | 2x DDR5 DIMM, up to 96GB, DDR5-5600 MHz (JEDEC & POR), Dual-Channel, Intel® XMP 3.0, non-ECC, un-buffered |
| Onboard Graphics | 1x HDMI™ 1.4 (4K @30Hz), 1x VGA (max 2048×1536 @50Hz, 1920×1200 @60Hz) |
| Expansion Slots | 1x PCIe 4.0 x16 (from CPU), 1x PCIe 3.0 x1 (from chipset) |
| Audio | Realtek® ALC897 Codec, 7.1 Channel HD Audio |
| Storage | 1x M.2 PCIe 3.0 x4/SATA (2280/2260/2242), 4x SATA III 6Gb/s ports |
| USB Ports (Rear) | 4x USB 2.0, 2x USB 5Gbps Type-A |
| USB Ports (Front) | 4x USB 2.0, 2x USB 5Gbps Type-A |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal I/O | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x JCI (Chassis Intrusion), 1x JAUD (Front Audio), 1x JCOM (COM Port), 1x JRGB (RGB LED), 1x TPM Header |
| Debug Features | 4x EZ Debug LED |
| Form Factor | Micro-ATX (24.4cm x 21cm) |
| Power Connector | 24-pin ATX, 8-pin CPU |
User Benefits
- Ready for latest Intel 14th Gen CPUs with DDR5 support.
- Compact Micro-ATX size for versatile builds.
- PCIe 4.0 and NVMe SSD for fast gaming or productivity.
- Clear troubleshooting with EZ Debug LEDs.
- Affordable and reliable choice for home, office, or budget gaming PCs.
Best For
- Budget and mid-range desktop builds.
- Office and productivity PCs.
- Compact gaming systems using DDR5 and PCIe 4.0 GPUs.
