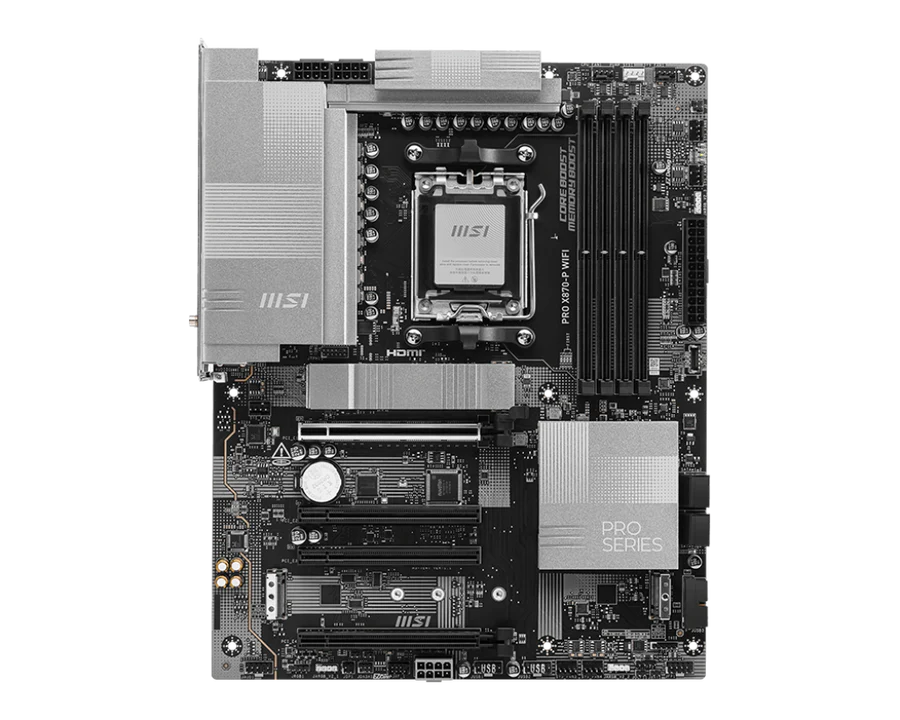

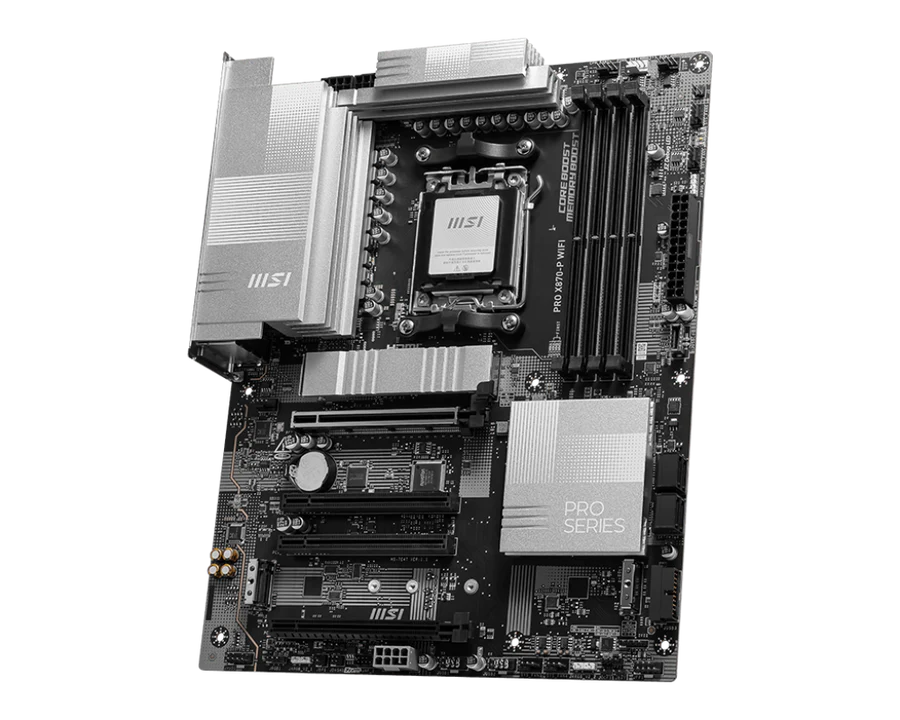

The MSI PRO X870-P WIFI DDR5 is a performance-focused ATX motherboard built for AMD Ryzen 9000 Series processors. Designed for professionals and power users, it supports DDR5 memory, PCIe 5.0, and fast networking with Wi-Fi 7 and 2.5G LAN. It’s engineered to deliver reliable power, efficient cooling, and broad connectivity in demanding work or gaming environments.

Key Features

• Supports AMD Ryzen 9000 Series processors (AM5 socket)
• Dual-channel DDR5 memory support up to 192GB
• 1× PCIe 5.0 x16 slot for next-gen graphics cards
• Wi-Fi 7 + 2.5G LAN for fast and stable networking
• USB 3.2 Gen 2×2 Type-C for high-speed data transfer
• Extended heatsinks and M.2 Shield Frozr for cooling
• Reinforced PCIe slots and optimized power delivery
• BIOS Flashback and debug LED for easy setup

Specifications

•  Chipset: AMD X870
•  Form Factor: ATX
•  CPU Socket: AM5
•  Memory Support: 4× DDR5 DIMM, up to 192GB, up to 7800+ MHz (OC)
•  Expansion Slots:
  • 1× PCIe 5.0 x16
  • 1× PCIe 4.0 x16
  • 2× PCIe 3.0 x1
•  Storage:
  • 4× M.2 (PCIe Gen4/Gen5)
  • 6× SATA 6Gb/s
•  USB Ports:

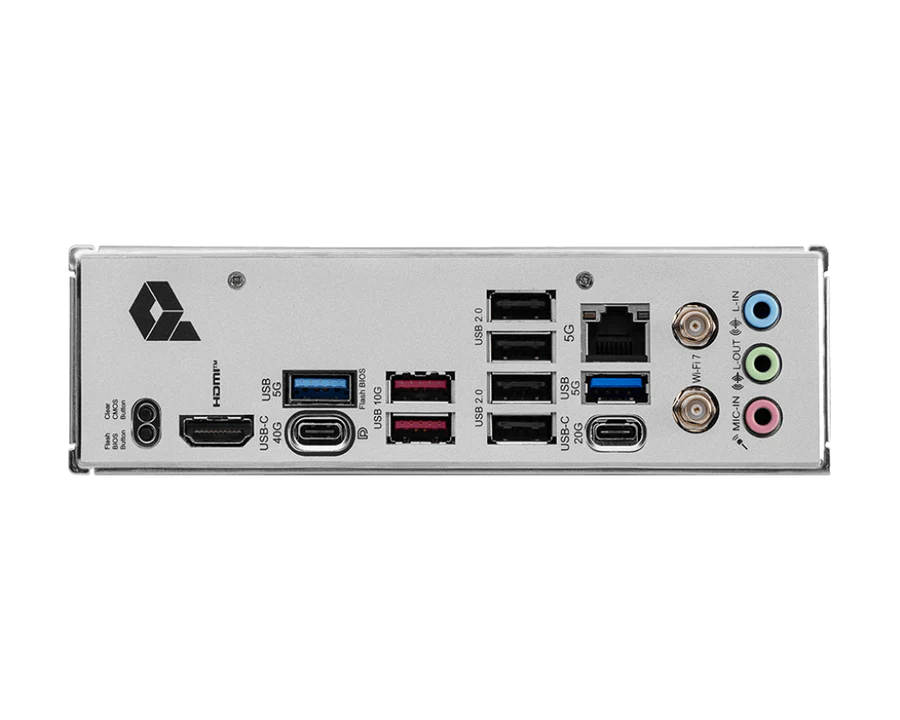

  • Rear: 1× USB-C 3.2 Gen 2×2, 3× USB-A 3.2 Gen 2, 4× USB 2.0
  • Internal: USB 3.2 Gen 1 and 2 headers, USB 2.0 headers
•  Networking: Wi-Fi 7, Bluetooth 5.4, 2.5G LAN
•  Audio: Realtek ALC4080 7.1 HD Audio
•  Power Phases: 14+2+1 Duet Rail Power System
•  Cooling: Extended VRM heatsinks, chipset heatsink, M.2 thermal pads

Compatibility and Use

• Built for AM5 CPUs like Ryzen 9950X
• Compatible with high-speed DDR5 kits
• Designed for high-performance gaming or workstation PCs
• Ready for Gen 5 SSDs and future GPU upgrades

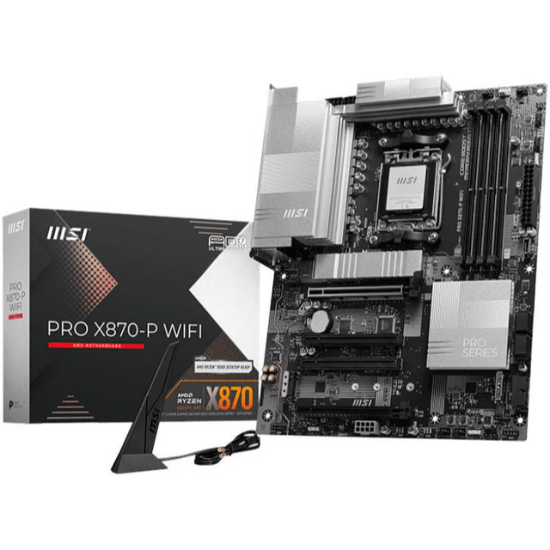

What’s Included

• MSI PRO X870-P WIFI DDR5 Motherboard – Black
• Wi-Fi Antenna
• SATA cables
• M.2 screws and standoffs
• User manual
• Installation DVD (if applicable)
