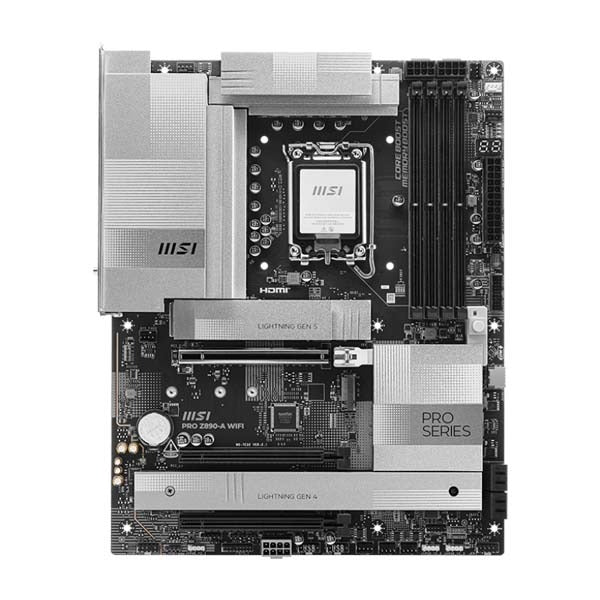

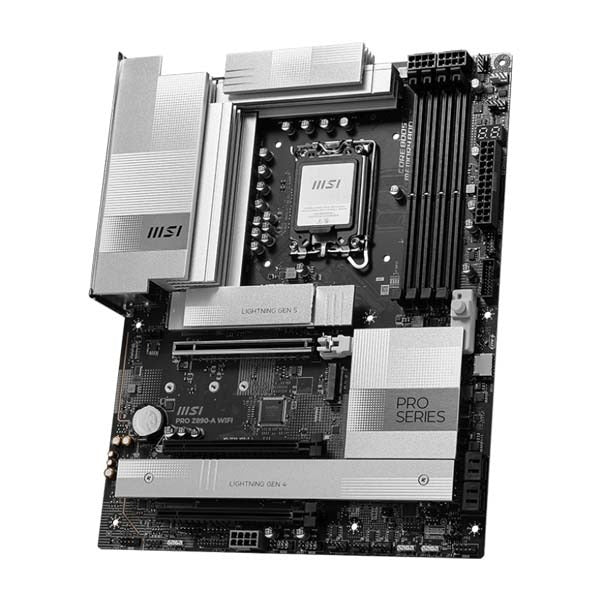

ATX Intel Z890 motherboard for LGA1851. Supports Intel Core Ultra (Series 2) desktop CPUs. Dual-channel DDR5 with four DIMMs up to 256 GB. One PCIe 5.0 x16 slot for graphics and four M.2 slots including one PCIe 5.0 x4. Built-in Wi-Fi 7 and 5 GbE LAN. Dual Thunderbolt 4 Type-C plus HDMI for display. Black color.

Key Features

• LGA1851 support for Intel Core Ultra (Series 2)
• DDR5 memory, 4 DIMMs, up to 256 GB
• Graphics slot: PCIe 5.0 x16 (steel-reinforced)
• Storage: 4 × M.2 with 1 × Gen5 x4 and 3 × Gen4 x4, plus 4 × SATA 6 Gb/s
• Networking: Wi-Fi 7 + Bluetooth 5.4 and 5 GbE LAN
• Display: 2 × Thunderbolt 4 Type-C with DP 2.1 over Type-C, 1 × HDMI 2.1
• Audio: Realtek ALC1220P, 7.1-channel HD, optical S/PDIF out
• Flash BIOS Button and pre-installed I/O shield
• EZ features: EZ PCIe Release, EZ M.2 Clip II, M.2 Shield Frozr, EZ Debug LEDs
• Extended heatsinks and VRM thermal pads

Specifications

•  Chipset: Intel Z890
•  CPU Socket / Support: LGA1851; Intel Core Ultra (Series 2)
•  Form Factor: ATX, 244 × 305 mm
•  Memory: 4 × DDR5 UDIMM; dual-channel; non-ECC, unbuffered; up to 256 GB
•  PCIe Slots:

  • PCI_E1: PCIe 5.0 x16 (from CPU)

  • PCI_E2: PCIe 4.0 x4 (from chipset)

  • PCI_E3: PCIe 4.0 x4 (from chipset)

• M.2 Slots (Key M):

  • M2_1: PCIe 5.0 x4; 2260/2280 (from CPU)

  • M2_2: PCIe 4.0 x4; 2260/2280/22110 (from CPU)

  • M2_3: PCIe 4.0 x4; 2242/2260/2280 (from chipset)

  • M2_4: PCIe 4.0 x4 or SATA 6 Gb/s; 2242/2260/2280 (from chipset)

•  SATA: 4 × SATA 6 Gb/s
•  RAID: RAID 0/1/5/10 on SATA and NVMe
•  Networking: Realtek 8126 5 GbE LAN; Wi-Fi 7; Bluetooth 5.4

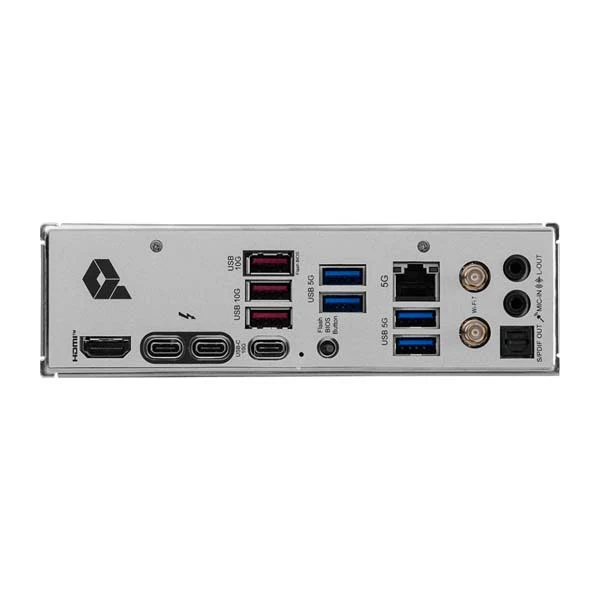

•  Rear I/O:

  • 2 × Thunderbolt 4 Type-C (from CPU, DP 2.1 over Type-C)

  • 1 × HDMI 2.1

  • 1 × USB-C 10 Gb/s (Gen2)

  • 3 × USB-A 10 Gb/s (Gen2)

  • 4 × USB-A 5 Gb/s (Gen1)

  • 1 × RJ-45 5 GbE

  • 2 × Wi-Fi antenna connectors

  • 2 × audio jacks + 1 × optical S/PDIF

  • Flash BIOS Button

•  Internal USB: Front USB-C 20 Gb/s with 27 W PD; 1 × USB 5 Gb/s header (adds 2 ports); 2 × USB 2.0 headers (add 4 ports)
•  Audio Codec: Realtek ALC1220P, 7.1-channel HD, S/PDIF out
•  Power Connectors: 24-pin ATX; 2 × 8-pin CPU; 1 × 8-pin PCIe auxiliary
•  Fan/LED Headers: 1 × CPU, 1 × pump/combo, 6 × system; 1 × 4-pin RGB; 3 × 3-pin ARGB Gen2
•  Monitoring/Debug: EZ Debug LEDs; EZ Digi-Debug LED
