Description

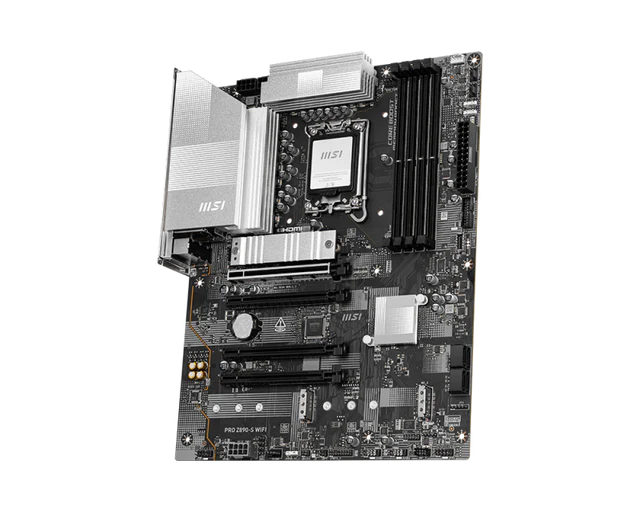

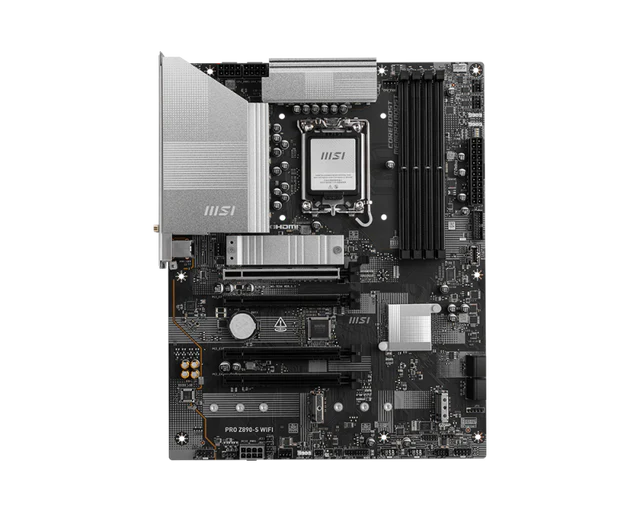

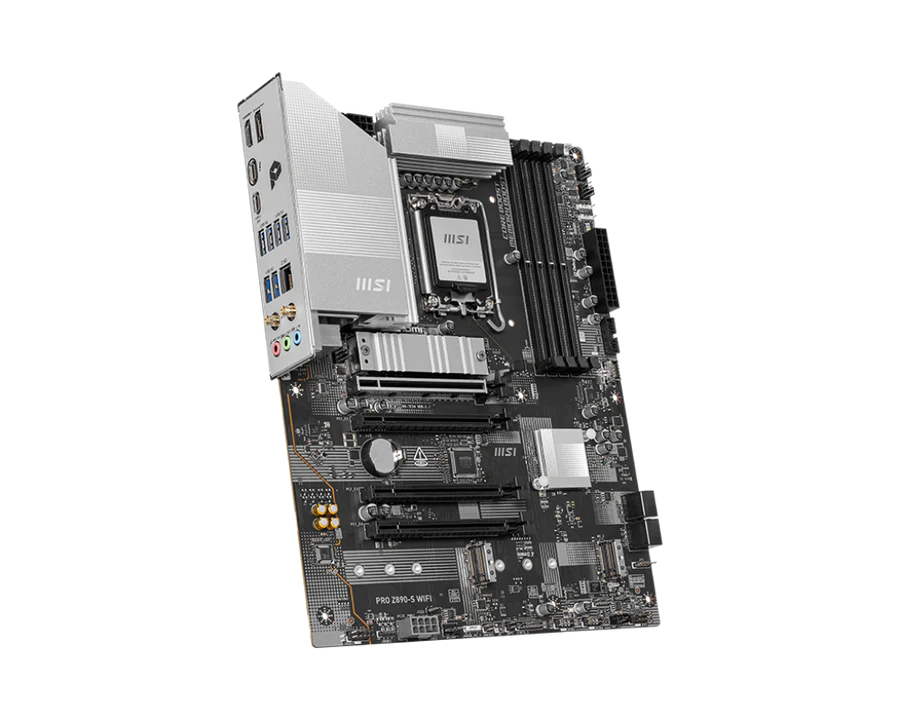

A next-generation Intel Z890 chipset motherboard built for Core Ultra Series 2 processors.
It supports DDR5 memory overclocking up to 8800+ MT/s, PCIe 5.0 for high-performance GPUs, and advanced storage with PCIe 5.0 and PCIe 4.0 M.2 slots.
The board features Thunderbolt 4, Wi-Fi 7, Bluetooth 5.4, and extensive USB connectivity, making it ideal for high-end gaming and professional setups.
Key Features
- Supports Intel Core Ultra Series 2 processors on LGA 1851 socket.
- Four DDR5 slots, up to 256 GB, overclocking to 8800+ MT/s.
- PCIe 5.0 x16 slot for next-gen GPUs, with multiple PCIe 4.0 and PCIe 3.0 slots.
- Three M.2 slots with PCIe 5.0/4.0 and SATA support.
- Full Thunderbolt 4 support with 40 Gbps transfer speeds and daisy-chaining.
- RAID 0/1/5/10 support for SATA and NVMe storage.
- Intel Wi-Fi 7 and Bluetooth 5.4 for high-speed wireless connectivity.
- Realtek 2.5Gb LAN for reliable wired networking.
- Premium audio with Realtek ALC897 codec, 7.1-channel HD sound.
- Multiple RGB headers and EZ Debug LEDs for system monitoring.
Specifications
| Category | Details |
|---|---|
| Chipset | Intel Z890 |
| CPU Support | Intel Core Ultra Series 2 |
| Socket | LGA 1851 |
| Memory Slots | 4 × DDR5 UDIMM, up to 256 GB |
| Memory Speed | DDR5 8800+ (OC), 6400–4800 (JEDEC), Intel XMP 3.0 |
| Memory Features | Dual-channel, Non-ECC, Un-buffered, CUDIMM support |
| Onboard Graphics | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), Type-C DP 2.1 (4K@120Hz / 8K@60Hz) |
| PCIe Slots | 1 × PCIe 5.0 x16 (CPU)1 × PCIe 4.0 x4 (CPU)1 × PCIe 4.0 x4 (Chipset)1 × PCIe 3.0 x1 (Chipset) |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| Storage | 3 × M.2 (PCIe 5.0/4.0, SATA)4 × SATA 6G |
| RAID | SATA: RAID 0/1/5/10NVMe: RAID 0/1/5 |
| Thunderbolt | 1 × Thunderbolt 4 port, up to 40Gbps, 8K display support |

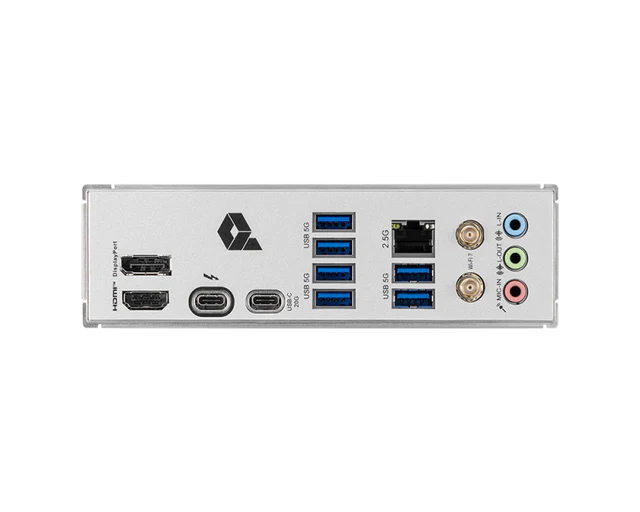

| USB Ports (Rear) | 6 × USB 5Gbps Type-A, 1 × USB 20Gbps Type-C, 1 × USB 40Gbps Type-C |
| USB Ports (Front) | 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 20Gbps Type-C |
| Networking | Realtek 8125D 2.5Gb LAN, Intel Wi-Fi 7, Bluetooth 5.4 |
| Fan Headers | 1 × CPU Fan, 1 × Pump/Combo Fan, 4 × System Fans |
| Power Connectors | 1 × 24-pin ATX, 2 × 8-pin CPU, 1 × 8-pin PCIe |
| RGB Headers | 3 × ARGB V2, 1 × RGB |
| Internal I/O | Thunderbolt 5 card connector, TPM header, chassis intrusion, front panel, EZ Debug LEDs |
| LED Indicators | 4 × EZ Debug LEDs |
