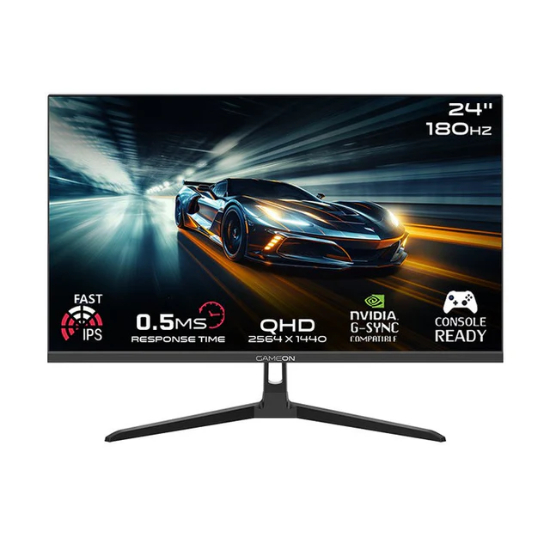

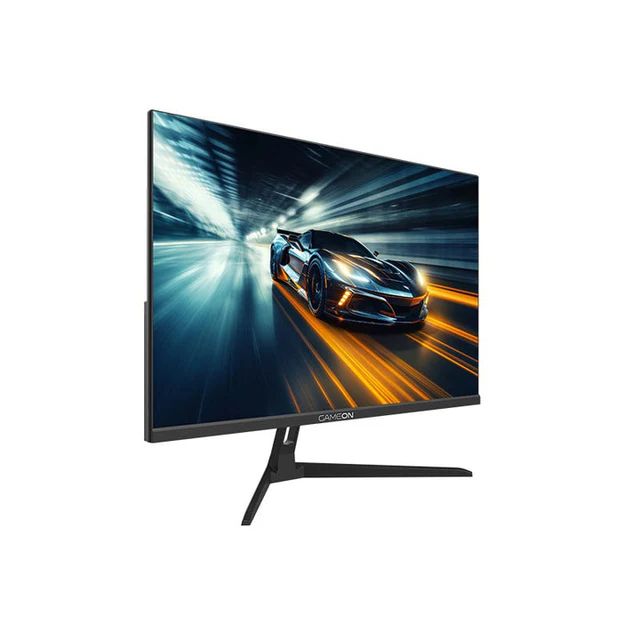

The GAMEON GOAE24QHD180IPS Pro Series is a 23.8-inch Fast IPS gaming monitor delivering QHD 2560×1440 resolution with a 180Hz overclocked refresh rate. With 0.5ms MPRT and 4ms GTG response time, every movement is rendered with precision and zero lag. The IPS panel covers 99% sRGB with a wide 178° viewing angle for accurate colors from any position. Dual HDMI 2.1 and dual DP 1.4 ports ensure full compatibility with PS5, Xbox Series X|S, and Nintendo Switch, while built-in dual speakers and a clean gaming-inspired black design with red RGB accent complete the package.
Key Features
- QHD 2560×1440 resolution on a 23.8-inch Fast IPS panel for crisp, detailed visuals
- 180Hz overclocked refresh rate for ultra-smooth, stutter-free gameplay
- 0.5ms MPRT and 4ms GTG response time for lag-free competitive performance
- FreeSync / Adaptive-Sync / VRR eliminate screen tearing
- GAME PLUS tools for competitive gaming enhancement
- Dual HDMI 2.1 and dual DP 1.4 — supports PS5, Xbox Series X|S, and Nintendo Switch
- Built-in dual speakers (4Ω 2W x2)
- 99% sRGB color coverage with 178°/178° viewing angles
- Red RGB accent lighting with sleek black design
- 5-key OSD with 8-language support, Low Blue Light, and 6 display modes
- VESA 100x100mm mount compatible
Technical Specifications
| Specification |
Details |
| Panel Type |
Fast IPS |
| OC Model |
CSOT |
| Screen Size |
23.8 inch |
| Aspect Ratio |
16:9 |
| Panel Shape |
Flat |
| Resolution |
2560 x 1440 (QHD) |
| Refresh Rate |
180Hz (OC) |
| Response Time |
0.5ms MPRT / 4ms GTG / 4ms OD |
| Brightness (Default) |
250 cd/m² (±30) |
| Brightness (Max) |
300 cd/m² (±30) |
| Contrast Ratio (Static) |
1000:1 (TYP) |
| Colors |
16.7M (8-bit) |
| Color Gamut (sRGB) |
99% |
| Color Gamut (NTSC) |
72% |
| HDR |
HDR Ready |
| Viewing Angle (H/V) |
178° / 178° |
| Backlight Type |
ELED |
| Default Color Temperature |
7500K |
| Chipset |
9800 |
| Display Area |
527.04 x 296.46 mm |
| RGB / Gaming Light |
Single Red |
| Appearance Color |
Black |
Connectivity
| Specification |
Details |
| HDMI |
2 x HDMI 2.1 |
| DisplayPort |
2 x DP 1.4 |
| Audio Output |
1 x 3.5mm Audio Out |
| Speakers |
Built-in Dual Speakers (4Ω 2W x2) |
| Console Support |
PS5, Xbox Series X|S, Nintendo Switch |
Gaming Features
| Specification |
Details |
| Sync Technology |
FreeSync / Adaptive-Sync / VRR |
| Gaming Tools |
GAME PLUS, Crosshair, Timer |
| Overdrive |
Yes |
| Display Modes |
6 Contextual Modes |
| Eye Care |
Low Blue Light, DCR |
OSD & Software
| Specification |
Details |
| OSD Key Control |
5 Keys |
| OSD Languages |
8 Languages (Default: English) |
| Main Functions |
Color Temperature (Cold/Warm/User), Low Blue Light, DCR, Multiple-Language Menu, GAME PLUS, FreeSync, VRR, Overdrive |
Power
| Specification |
Details |
| Power Input |
DC 12V 4A |
| Power Supply |
External Power Adapter |
| Max Power Consumption |
48W |
| Standby Power |
≤0.5W |
| Indicator Light |
Blue LED (Power On) |
Design & Ergonomics
| Specification |
Details |
| Stand Tilt |
5° Forward / 15° Backward |
| VESA Mount |
100 x 100 mm |
| VESA Mount Method |
VESA Screw |
Dimensions & Weight
| Specification |
Details |
| Unit With Stand |
541 x 412 x 149 mm (±5mm) |
| Unit Without Stand |
541 x 322 x 35 mm (±5mm) |
| Package Size |
600 x 95 x 392 mm |
| Net Weight |
2.86 kg (±0.2) |
| Gross Weight |
3.76 kg (±0.3) |
Environmental Specifications
| Specification |
Details |
| Working Temperature |
0°C ~ 40°C |
| Storage Temperature |
-20°C ~ 60°C |
| Working Humidity |
10% ~ 85% RH |
| Storage Humidity |
5% ~ 90% (No freezing under 40°C) |
Box Contents
- 1 x GAMEON GOAE24QHD180IPS Pro Series 23.8″ Gaming Monitor – Black
- 1 x Monitor Stand
- 1 x External Power Adapter (DC 12V 4A)
- 1 x Product Documentation
