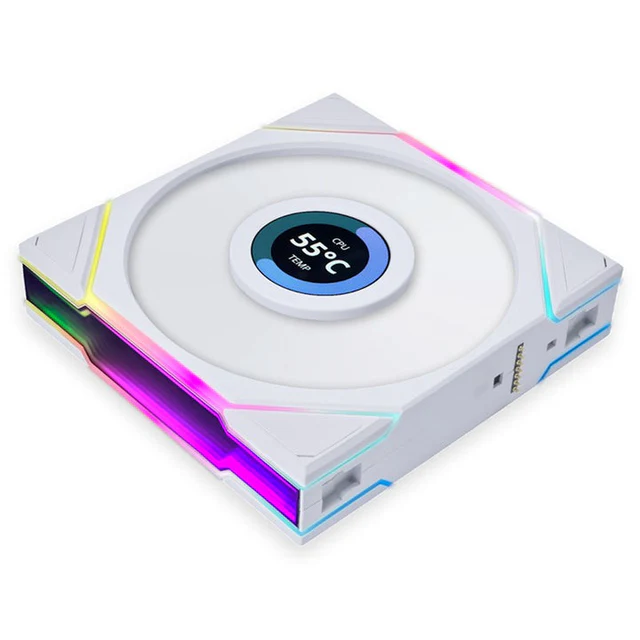

The UNI FAN TL LCD is a 120mm ARGB fan designed for performance, personalization, and system monitoring. Each fan includes a built-in 1.6″ LCD screen to display live system data or custom visuals, powered and controlled through L-Connect 3 software.

Key Features

• 1.6″ LCD screen (400×400 resolution, 500 nits)
• Full-color IPS display with SRGB-24-bit
• Upload custom MP4 / GIF / PNG / JPG content
• Displays live CPU/GPU temps, fan speed
• Each port connects up to 3 fans (max 9 TL LCD fans per controller)
• Slide-in daisy-chain setup with 1 cable per group
• Removable interlocking key for compatibility
• Compatible with TL and TL LCD on one controller
• Optimized fan speed control per cluster
• 26 ARGB LEDs per fan with side lighting
• Enlarged infinity mirror on both sides
• Anti-vibration rubber pads cover visible screws

Cooling Performance

• Fan speed: 0, 350 – 1900 RPM
• Max airflow: 62 CFM
• Max air pressure: 2.9 mmH?O
• Max noise: 27 dB(A)
• Bearing: Fluid Dynamic Bearing (FDB)
• Power: 7.08W
• Voltage: 12V (fan), 5V (LED)
• Dimensions: 124 x 120 x 28 mm

Build and Materials

• Materials: PA66 / PBT
• Thicker 28mm frame for better static pressure
• Magnetic rubber ring and metal bearing shell
• Brazz nut prevents oil leaks
• Copper shaft for fan blade stability
• Stator for smooth rotation

Software Control

• Full control with L-Connect 3
• Individual lighting effect per fan side
• Custom fan speed profiles
• LCD screen settings with live monitoring
• Max 12 TL LCD fans per software instance
• Option to expand with additional controller
• Note: Port 1 on the controller does not support TL LCD

Included in the Box

• 3 × UNI FAN TL LCD 120mm – Black
• 1 × UNI FAN controller cable (P-7P)
• Mounting accessories
• User manual
