The ASUS PRIME GeForce RTX 5070 Ti 16GB OC Edition combines cutting-edge NVIDIA Ada architecture with ASUS’s renowned reliability and cooling technology.
Designed for creators and gamers who demand next-level performance, it delivers ultra-smooth gameplay, efficient cooling, and enhanced overclocking potential in a sleek and durable build.

Key Features

•  Powered by NVIDIA Ada Lovelace Architecture: Brings faster ray tracing, improved DLSS 4 AI upscaling, and superior rendering efficiency.
•  16GB of Next-Gen GDDR7 Memory: Massive bandwidth for 4K gaming, 3D design, and video editing.
•  Factory Overclocked Performance: Boost clock up to 2640 MHz for higher frame rates and improved responsiveness.
•  Advanced Cooling System: Dual Axial-tech fans with optimized air pressure and ultra-quiet performance.
•  Auto-Extreme Technology: Fully automated manufacturing ensures consistent quality and durability.
•  Reinforced Backplate: Provides structural rigidity and improved heat dissipation.

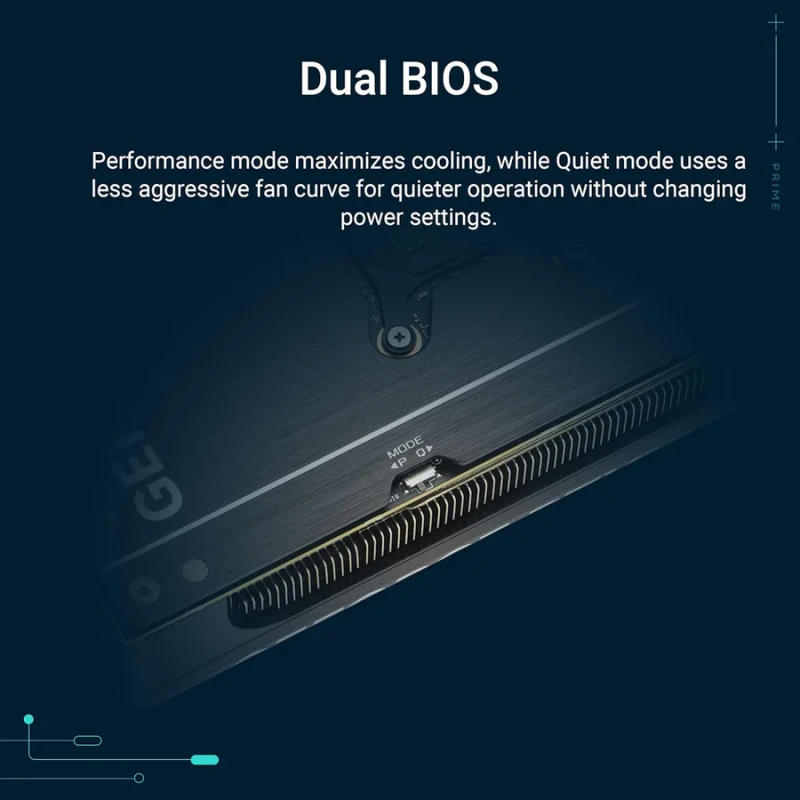

•  Dual BIOS Mode: Easily switch between quiet and performance profiles based on your preference.
•  Comprehensive Software Control: GPU Tweak III gives users complete control over performance tuning, fan curves, and monitoring.
•  HDMI 2.1b & DisplayPort 2.1: Future-ready connectivity supporting up to 8K 120Hz and 4K 480Hz displays with DSC.

Technical Details

•  Graphics Engine: NVIDIA GeForce RTX 5070 Ti
•  Model Number: 90YV0MF0-M0NA00
•  Architecture: Ada Lovelace
•  CUDA Cores: 8,448 Units
•  Base Clock: 2310 MHz
•  Boost Clock (OC Mode): 2640 MHz
•  Memory: 16GB GDDR7
•  Memory Interface: 256-bit
•  Memory Speed: 30 Gbps
•  Bus Standard: PCI Express 5.0
•  Digital Max Resolution: 7680 × 4320 (8K Ready)
•  Display Outputs:
  • 3 × DisplayPort 2.1
  • 1 × HDMI 2.1b
•  HDCP Support: Yes (2.3)
•  Maximum Displays Supported: 4
•  VR Ready: Yes
•  Ray Tracing Cores: 3rd Generation
•  Tensor Cores: 4th Generation (DLSS 4 Support)
•  G-SYNC® Technology: Supported
•  DirectX Support: 12 Ultimate
•  OpenGL Support: 4.6

Power and Cooling

•  Recommended PSU: 750W
•  Power Connector: 1 × 16-pin (ATX 3.1 Compatible)
•  Power Consumption: 285W (Typical)
•  Cooler Design: Dual Fan Cooling
•  Fan Type: Axial-tech Fans with Dual Ball Bearings
•  Thermal Design: Aluminum Heatsink + Copper Baseplate
•  Noise Level: Low-Noise Mode with 0dB Fan Technology

Physical Specifications

•  Dimensions: 303 × 121 × 49 mm

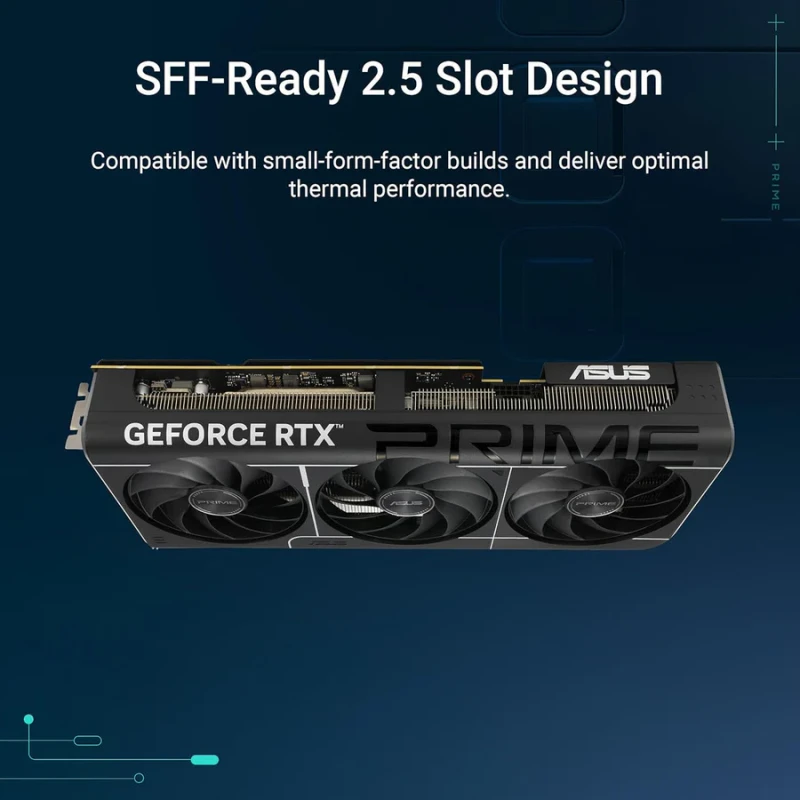

•  Slot Size: 2.5 Slots
•  Weight: 1.1 kg
•  Backplate: Metal Reinforced
•  RGB Lighting: Minimalist Aura Sync White Strip

Included Items

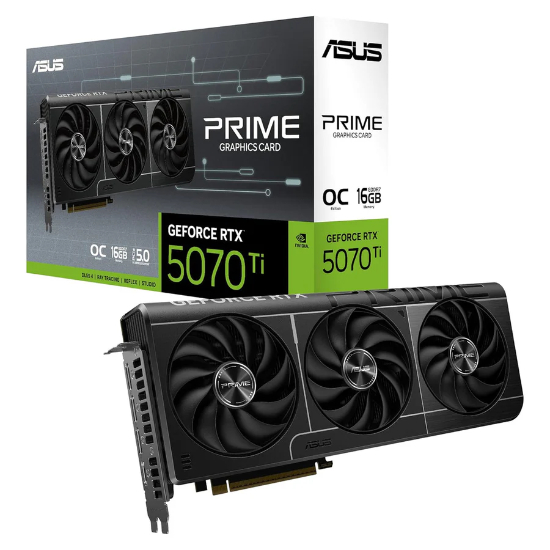

• ASUS PRIME GeForce RTX 5070 Ti 16GB GDDR7 OC Edition Graphics Card
• Quick Start Guide
• Support Bracket
• 16-pin Power Adapter
• Documentation Pack
