Description
Product Description

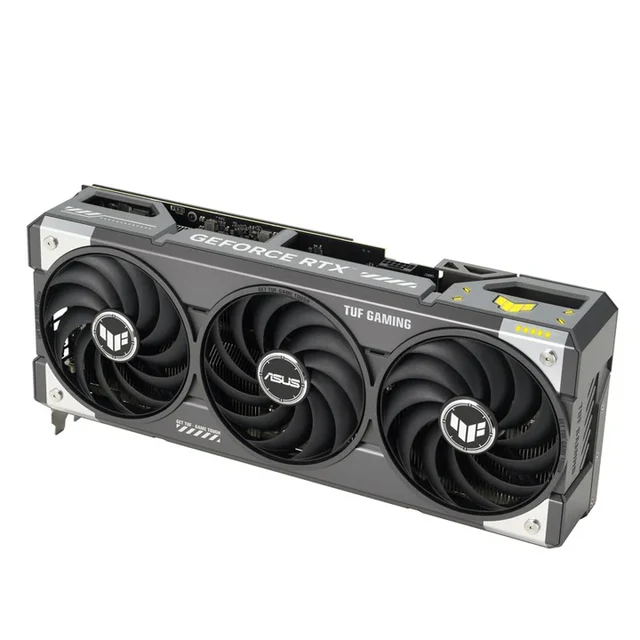

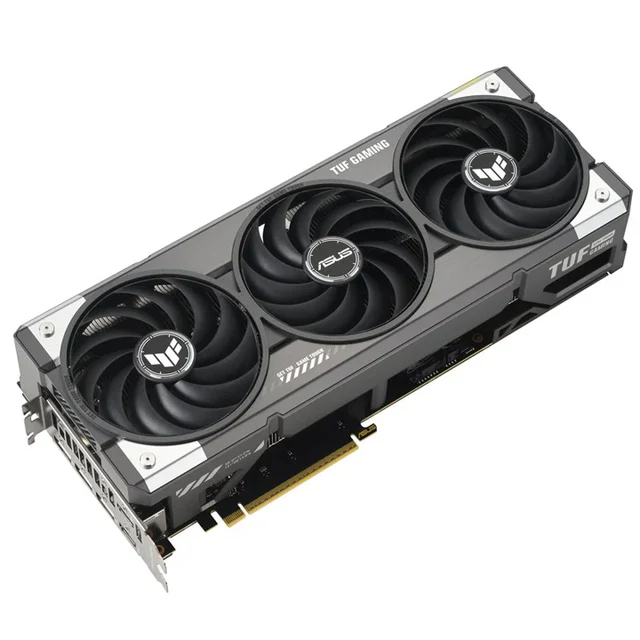

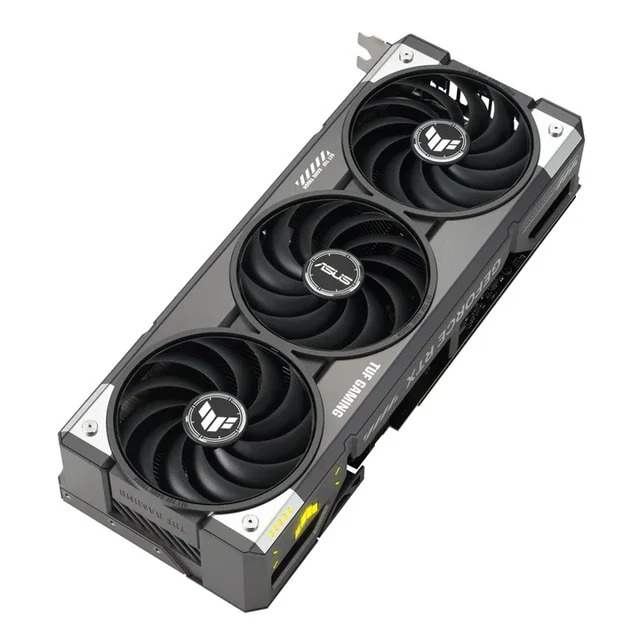

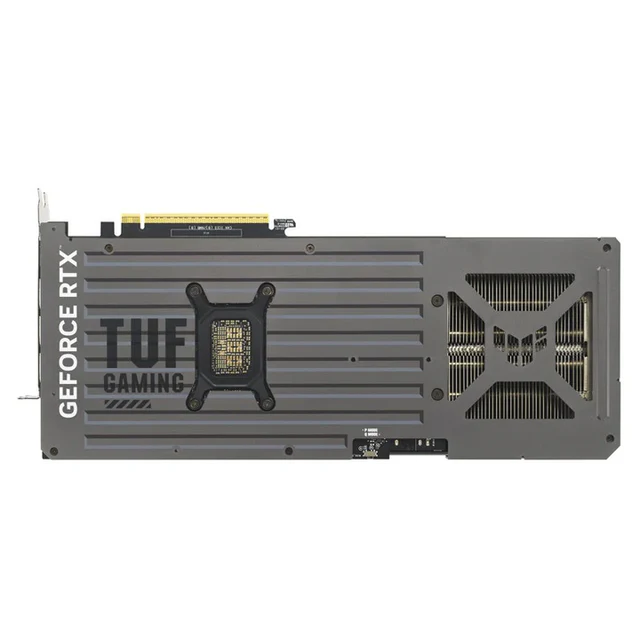

The ASUS TUF Gaming GeForce RTX 5070 OC Edition is built for long-lasting performance, efficiency, and thermal stability. Powered by NVIDIA’s latest Blackwell architecture, this GPU offers high-end 1440p performance and is capable of smooth 4K gaming with DLSS 4. It features 12GB of high-speed GDDR7 memory, factory overclocking, and a rugged design with military-grade components. The triple-fan cooling and dual BIOS modes provide advanced thermal control and acoustic flexibility.
Key Features
- Factory overclocked boost clock up to 2640 MHz for higher in-game frame rates
- 12GB of ultra-fast GDDR7 memory (28 Gbps) with 672 GB/s memory bandwidth
- Triple Axial-tech fans and vapor chamber for low-noise, efficient cooling
- Military-grade capacitors and protective PCB coating for long-term durability
- Dual BIOS switch for Performance and Quiet operation modes
Technical Specifications
| Specification | Details |
|---|---|
| GPU | NVIDIA GeForce RTX 5070 (Blackwell) |
| CUDA Cores | 6144 |
| Boost Clock | 2640 MHz (OC Mode) |
| Base Clock | 2325 MHz |
| Memory | 12GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 192-bit |
| Bandwidth | 672 GB/s |
| PCIe Interface | PCIe 5.0 x16 |

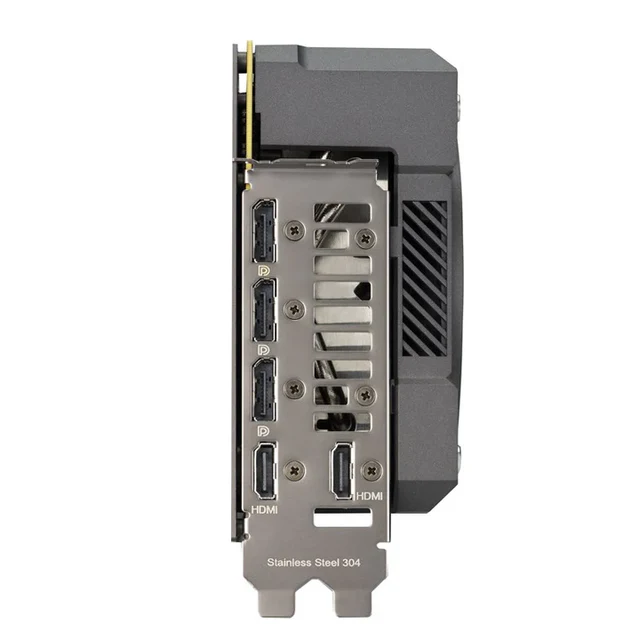

| Outputs | 3x DisplayPort 2.1, 2x HDMI 2.1 |
| Power Connector | 1x 16-pin |
| Recommended PSU | 750W |
| Slot Size | 3.125 slots (~4-slot) |
| Dimensions | 329 x 140 x 63 mm |
| Cooling System | Triple Axial-tech fans, vapor chamber |
| BIOS Modes | Performance / Quiet |
| Features | DLSS 4, Ray Tracing, AV1 Encoding |
| Software Support | GPU Tweak III, GeForce Experience |
User Benefits
- High refresh rate 1440p and smooth 4K gaming with enhanced DLSS 4
- Improved cooling and lower acoustic noise with triple-fan setup
- Long lifespan due to durable military-grade components
- Flexible performance tuning with dual BIOS switch
- Smooth content creation with AV1 encoding and high memory bandwidth
Compatibility
- Works with PCIe 5.0 and PCIe 4.0 motherboards
- Supports NVIDIA G-SYNC, Reflex, and Studio Drivers
- Compatible with latest Windows 10/11 64-bit systems
- Requires 750W+ PSU and 16-pin power connector
Included Items
- ASUS TUF Gaming RTX 5070 OC Edition graphics card
- Quick installation guide
- Support documentation
