Description

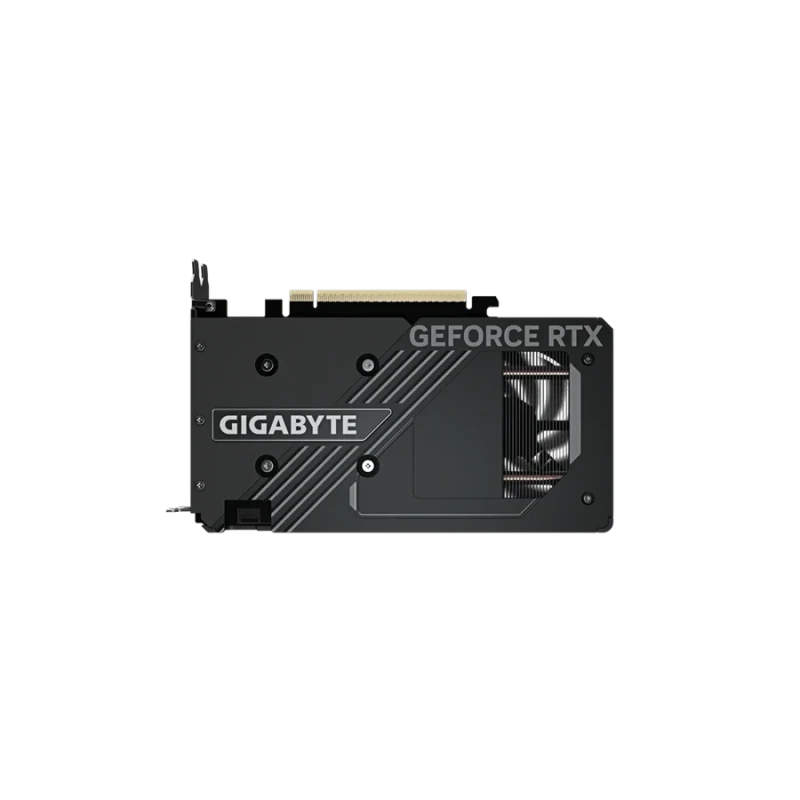

The GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8GB is designed for gamers who need strong 1080p and entry-level 1440p performance.
It uses NVIDIA’s Blackwell architecture and GDDR7 memory for faster data transfer and better efficiency.
The upgraded WINDFORCE MAX cooling system provides improved thermal control with larger fans, extended heat pipes, and optimized airflow for stable overclocked performance.
Key Features
- NVIDIA GeForce RTX 5060 GPU with Blackwell architecture.
- 8 GB GDDR7 VRAM with 128-bit memory interface.
- Boost clock higher than standard WINDFORCE models for extra performance.
- PCI Express 5.0 ×8 for next-gen bandwidth.
- WINDFORCE MAX triple-fan cooling with alternate spinning and enlarged copper heat pipes.
- 3D Active Fan with stop function for silent operation in low-load scenarios.
- Reinforced backplate for durability.
- DLSS 4 with Multi-Frame Generation for smoother, AI-powered gameplay.
- NVIDIA Reflex 2 for reduced latency in competitive games.
- HDMI 2.1b and DisplayPort 2.1b for high-resolution and high-refresh output.
Specifications
| Category | Details |
|---|---|
| GPU Model | NVIDIA GeForce RTX 5060 |
| Architecture | Blackwell |
| CUDA Cores | 3,840 |
| Memory Size | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed | ~28 Gbps |
| Boost Clock | Higher than 2,512 MHz (factory overclocked) |
| Interface | PCI Express 5.0 ×8 |
| Cooling System | WINDFORCE MAX triple-fan with copper heat pipes |
| Ports | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Power Connector | 1× 8-pin PCIe |
| Recommended PSU | 450 W minimum |
| Dimensions | Larger than standard WINDFORCE for improved cooling |
| Special Features | DLSS 4, Reflex 2, ACE, Broadcast & Studio |
