Description

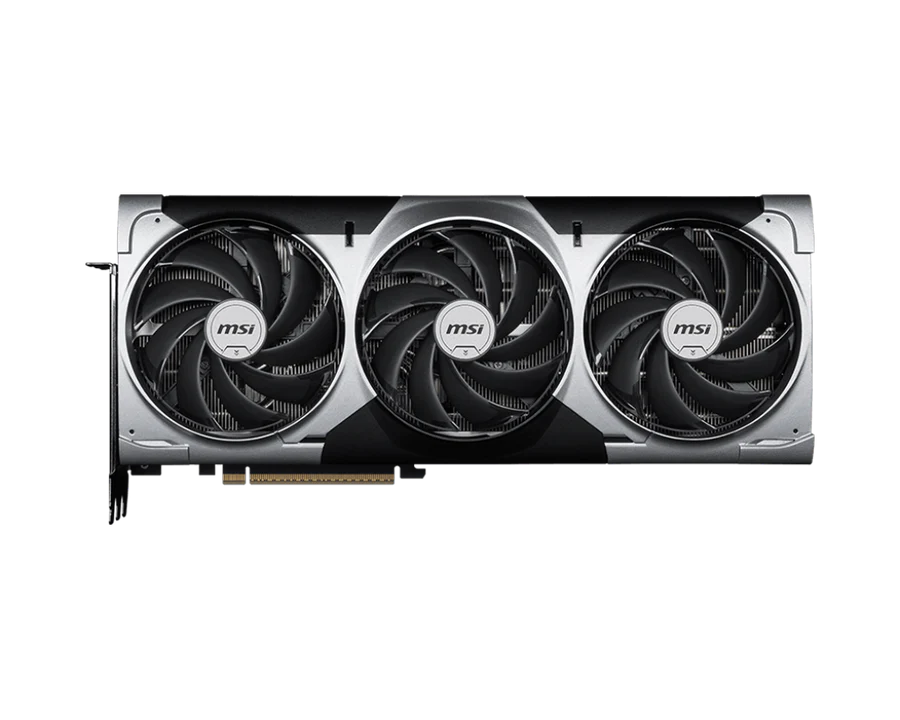

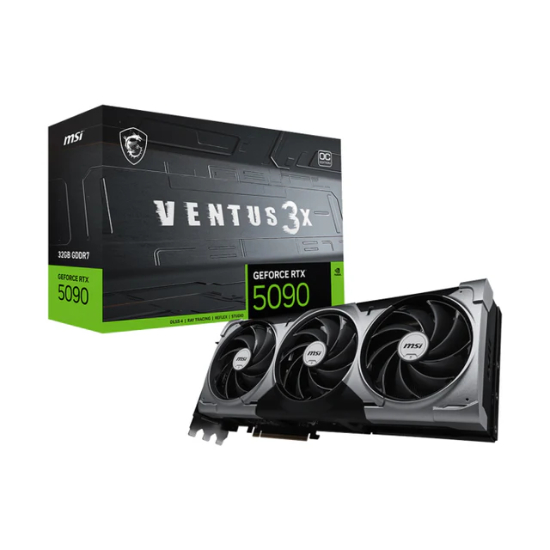

The MSI GeForce RTX 5090 Ventus 3X OC Edition is a high-end graphics card powered by NVIDIA’s Blackwell architecture, featuring 32 GB of ultra-fast GDDR7 memory and expertly optimized boost clocks via MSI Center. Its triple-fan Ventus 3X thermal design ensures robust cooling in a sleek black aesthetic.
Key Features
- NVIDIA GeForce RTX 5090 GPU powered by the Blackwell architecture.
- 32 GB GDDR7 memory on a 512-bit interface.
- Factory overclocked performance with Extreme Performance Mode (~2452 MHz).
- PCI Express Gen 5 interface for high-speed data transfer.
- Advanced triple-fan cooling (TORX Fan 5.0) with nickel-plated baseplate and specialized thermal engineering.

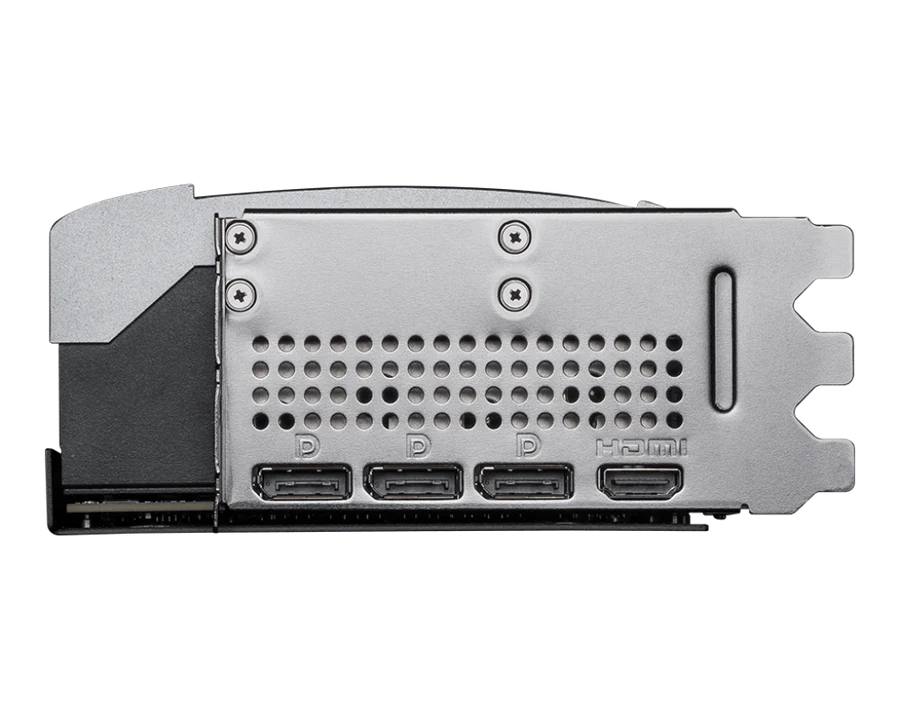

- Multiple modern display outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b.
- Supports DLSS 4 and real-time ray tracing for enhanced visuals.
Specifications
| Specification | Details |
|---|---|
| GPU Model | NVIDIA GeForce RTX 5090 |
| Architecture | Blackwell |
| CUDA Cores | 21,760 |
| Clock Speeds | Extreme Performance Mode: up to ~2452 MHz; Boost: ~2437 MHz |
| Interface | PCI Express Gen 5 ×16 |
| Memory Size & Type | 32 GB GDDR7 |
| Memory Bus & Speed | 512-bit / 28 Gbps |
| Cooling System | Triple-fan Ventus 3X with TORX Fan 5.0 and enhanced heat pipes |
| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Maximum Displays | Up to 4 |
| Max Resolution | Up to 8K (4320p) |

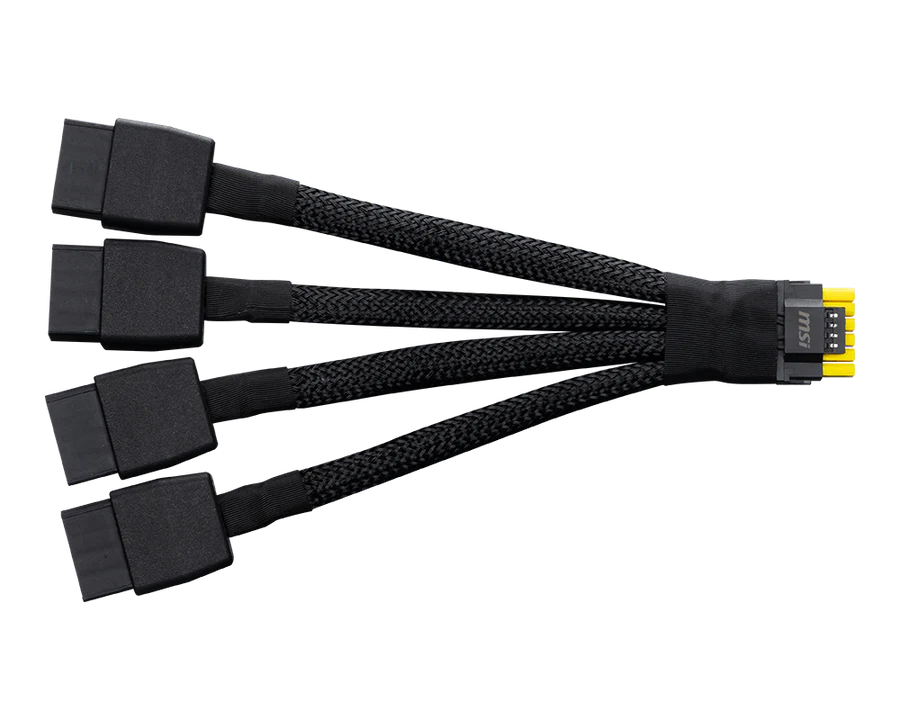

| Power Connector | 1 × 16-pin (ATX 3.1), Power Draw: ~575 W |
| Recommended PSU | 1000 W |
| Dimensions | Approx. 325 × 139 × 67 mm |
| Weight | Approx. 1875 g |
