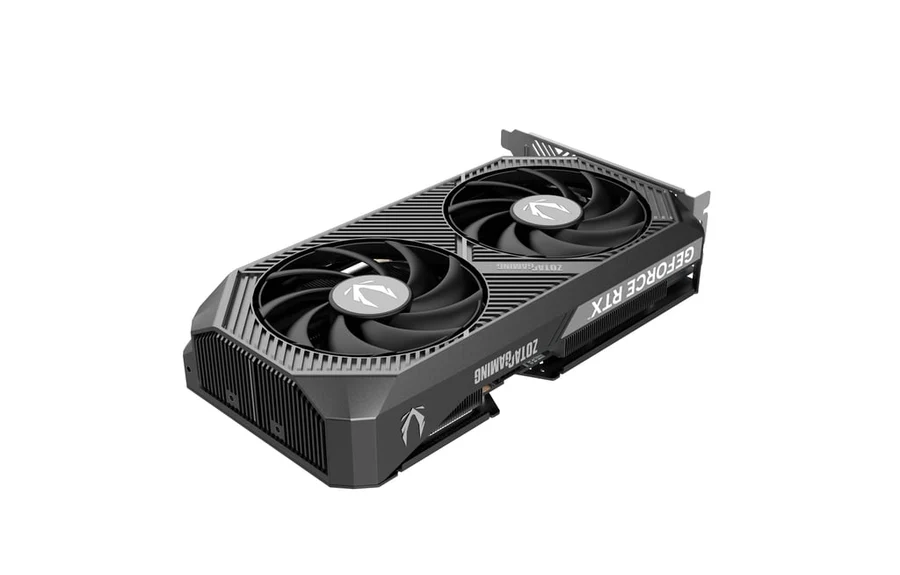

The ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC is a compact yet powerful graphics card built for gamers and creators who need high performance in a small form factor. Based on NVIDIA’s latest Blackwell architecture, it delivers advanced ray tracing, AI-powered graphics, and efficient cooling through a dual-fan design.

Key Features

• Powered by NVIDIA Blackwell GB206 architecture for next-gen rendering

• 8GB of GDDR7 memory for high-speed performance and smooth gameplay

• IceStorm 2.0 cooling system keeps the card running cool and quiet

• Twin Edge design optimized for compact PC cases

• DLSS 4 support boosts frame rates with AI-enhanced upscaling

Technical Specifications

• GPU: NVIDIA GeForce RTX 5060 Ti

• CUDA Cores: 4608

• Memory: 8GB GDDR7, 128-bit, 28 Gbps

• Boost Clock: Up to 2602 MHz

• Interface: PCI Express 5.0 x8

• Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b

• Power Connector: 1 x 8-pin

• Power Consumption: 180W

• Recommended PSU: 600W

• Dimensions: Approx. 220 x 123 x 40 mm

Compatibility

• Operating Systems: Windows 10 and Windows 11

• Supported APIs: DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4

• VR Ready

• Supports up to 4 monitors

What’s in the Box

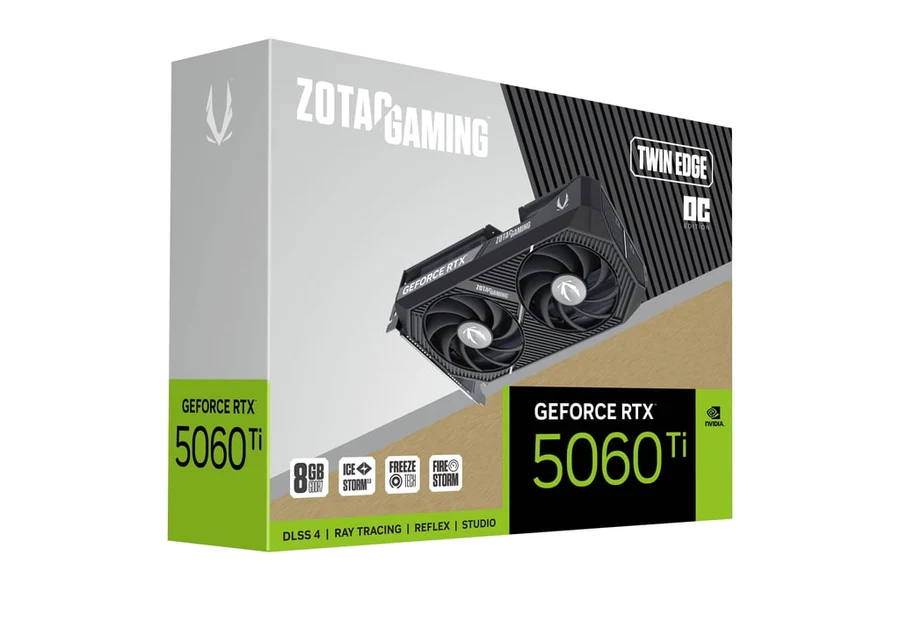

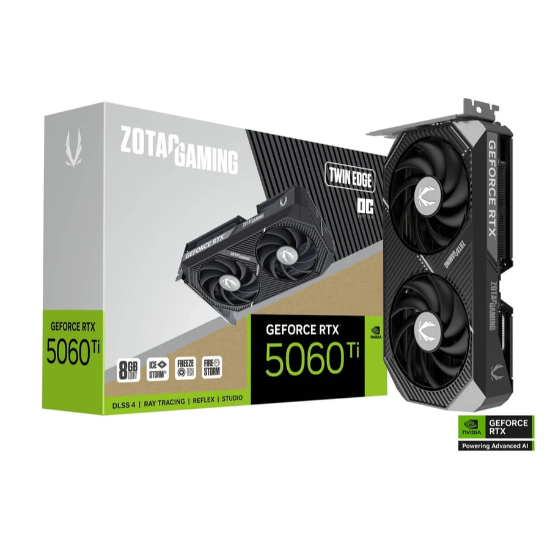

• ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC graphics card

• 8-pin power cable

• User manual
