Description

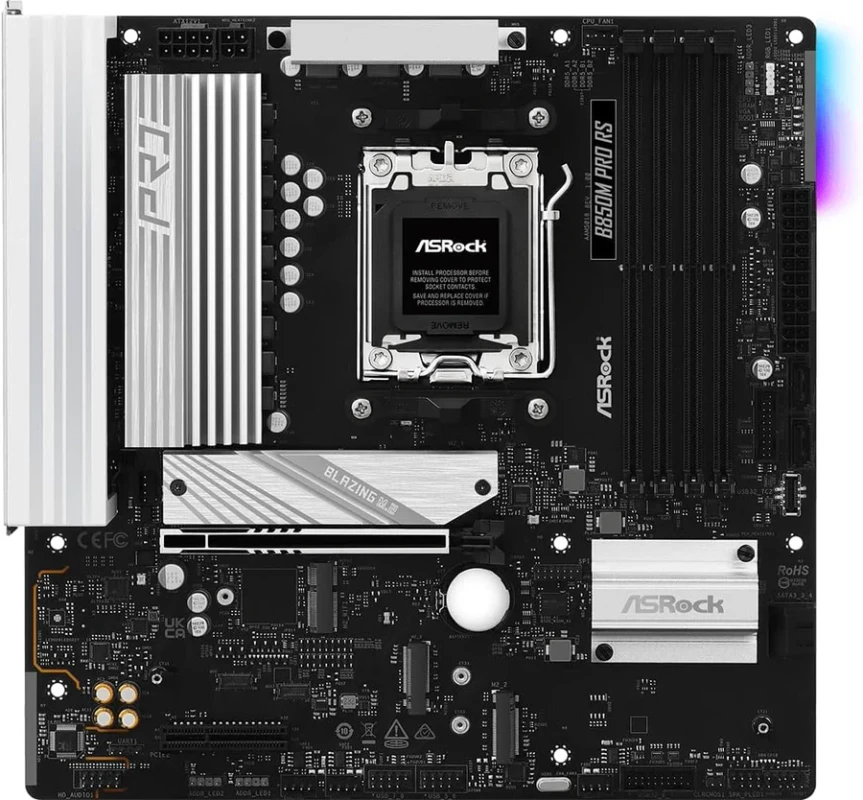

The ASRock B850M Pro RS WiFi is a Micro-ATX motherboard built with AMD Socket AM5 support for Ryzen™ 9000, 8000, and 7000 series processors. Designed for gamers, creators, and professionals, it combines PCIe Gen5 support, DDR5 memory compatibility, ultrafast networking, and rock-solid durability. Featuring advanced connectivity with Wi-Fi 6E, 2.5G LAN, multiple USB ports, and a robust 8+2+1 power phase design with Dr.MOS, it ensures performance and reliability for demanding workloads.
Key Features
- Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors (Socket AM5).
- PCIe Gen5 support for graphics and M.2 storage.
- Dual Channel DDR5 memory, up to 256GB and 8000+ (OC).
- Rock-Solid 8+2+1 Power Phase with Dr.MOS.
- Integrated Wi-Fi 6E (802.11axe) and 2.5G LAN.
- Pre-installed I/O shield for easy installation.
- 100+ connectivity options including HDMI 2.1 and DisplayPort 1.4.
- BIOS Flashback button and Auto Driver Installer.
- Premium audio with Realtek ALC897 codec and Nahimic software.
- ASRock Polychrome SYNC RGB lighting control.
Technical Specifications
| Category | Details |
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 9000 / 8000 / 7000 series |
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5, 4 × DIMM slots, up to 256GB, supports XMP/EXPO |
| Graphics | Integrated AMD RDNA™ graphics (depends on CPU), HDMI 2.1 (4K@120Hz), DisplayPort 1.4 (4K@120Hz) |
| Audio | 7.1 CH HD Audio, Realtek ALC897, Nahimic support |
| LAN | 2.5G LAN (Dragon RTL8125BG), bandwidth control software |
| Wireless | Wi-Fi 6E (802.11axe), Bluetooth 5.2, MU-MIMO, dual antenna support |
| Expansion Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4 |
| Storage | 1 × M.2 Gen5x4, 2 × M.2 Gen4x4, 4 × SATA3 6Gb/s, supports RAID 0/1/10 |
| USB (Rear/Front) | 1 × USB 3.2 Gen2 Type-C, 1 × USB 3.2 Gen2 Type-A, 6 × USB 3.2 Gen1, 8 × USB 2.0 |
| Connectors | Multiple RGB/ARGB headers, 24-pin ATX, 8-pin + 4-pin 12V power, CPU & chassis fan headers |

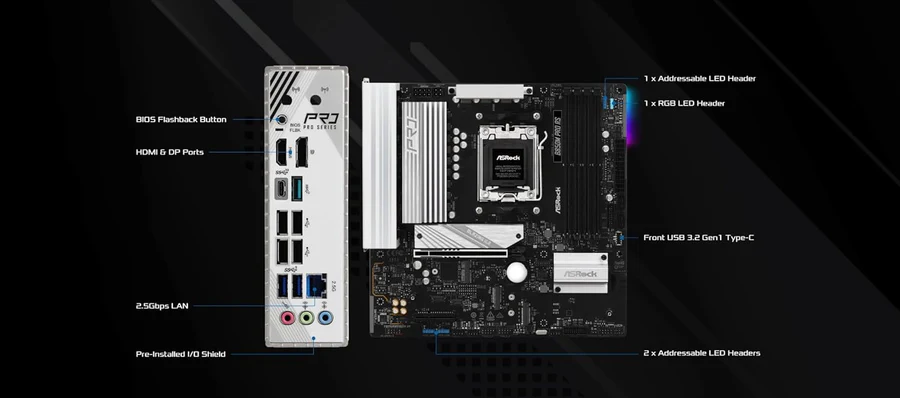

| Rear I/O | 2 × Wi-Fi antenna ports, 1 × HDMI, 1 × DisplayPort 1.4, 1 × USB 3.2 Gen2 Type-A, 1 × USB 3.2 Gen2 Type-C, 2 × USB 3.2 Gen1, 4 × USB 2.0, 1 × RJ-45 LAN, 1 × BIOS Flashback button, Audio jacks |
| BIOS | 256Mb AMI UEFI Legal BIOS, EZ Mode, Instant Flash |
| Form Factor | Micro ATX (9.6″ × 9.6″) |
| OS Support | Windows 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready |

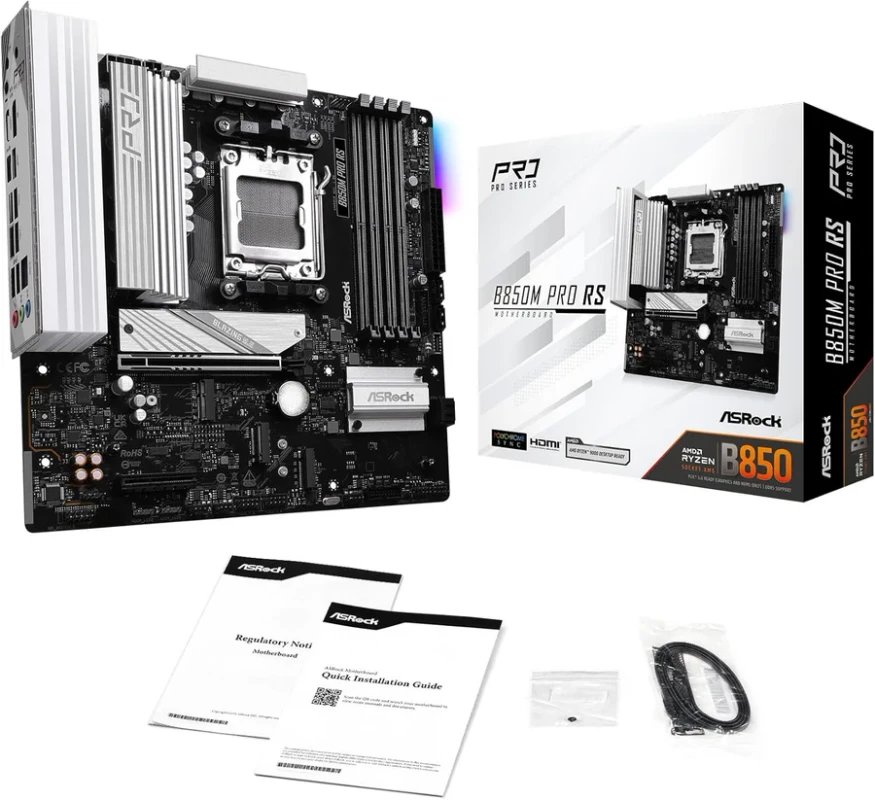

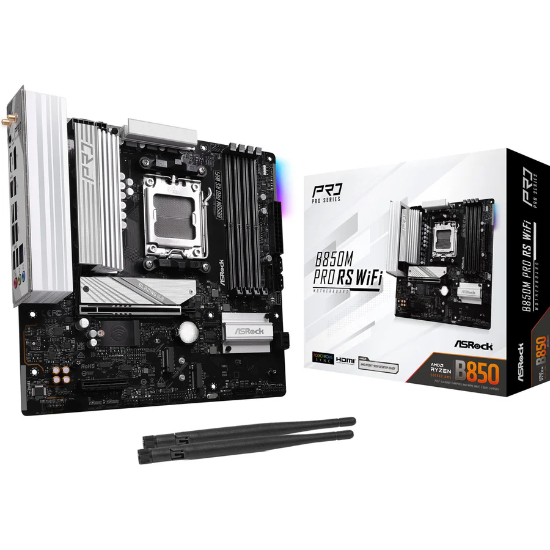

| Accessories | 2 × SATA cables, 2 × Wi-Fi antennas |
