Description

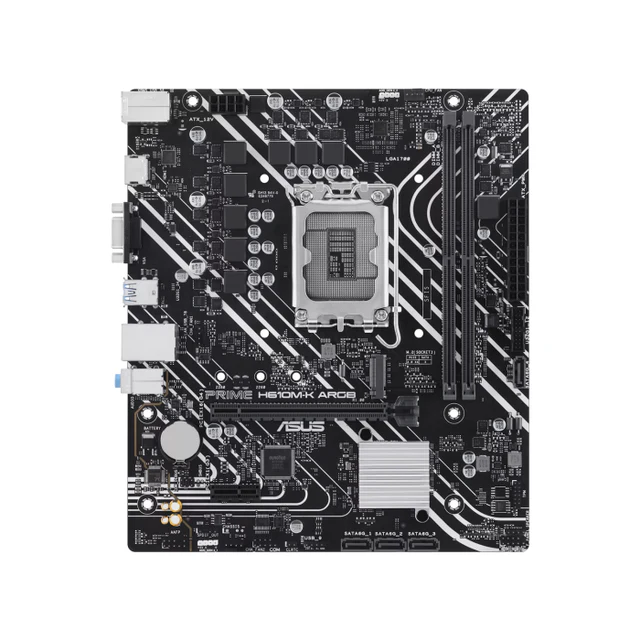

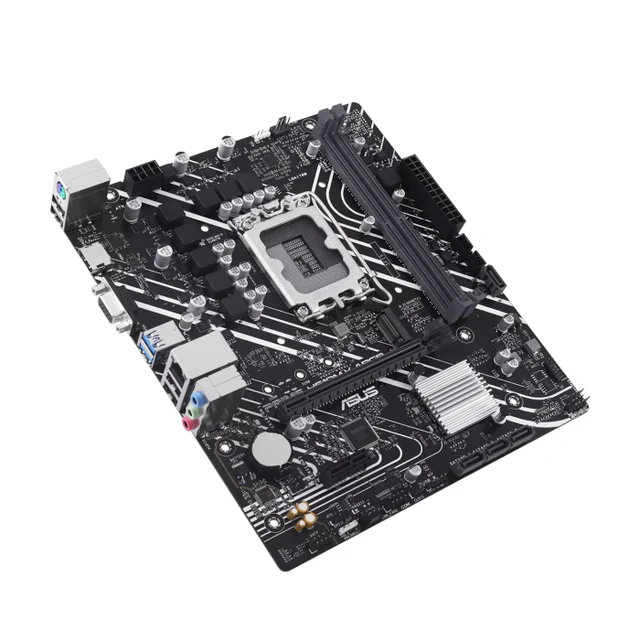

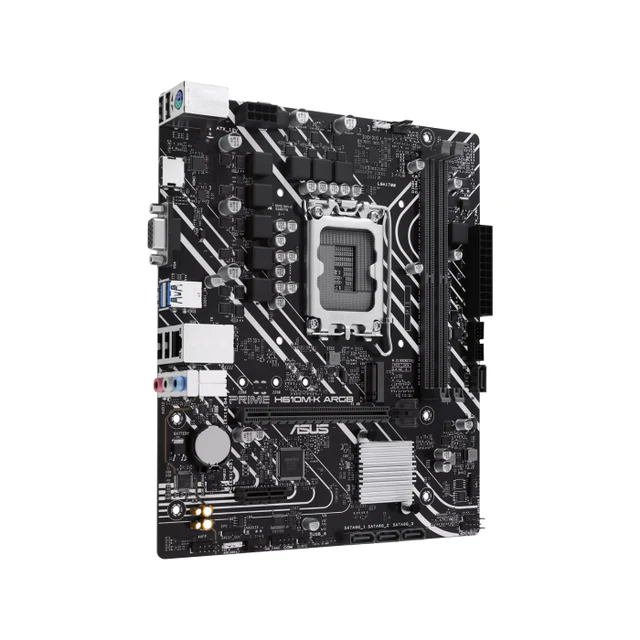

The Asus Prime H610M-K ARGB motherboard is designed for reliable performance, expandability, and modern connectivity. Supporting DDR5 RAM, PCIe 4.0, and Intel 12th & 13th Gen processors, this micro-ATX motherboard provides an efficient and stable foundation for gaming, content creation, and productivity. With ARGB lighting support, users can customize their setup with vibrant lighting effects.
Technical Specifications
| Specification | Details |
|---|---|
| Socket | Intel LGA 1700 |
| Chipset | Intel H610 |
| Memory Support | 2 x DDR5 slots (up to 64GB, 5200MHz OC) |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 (PCIe 3.0), 4 x SATA 6Gb/s |

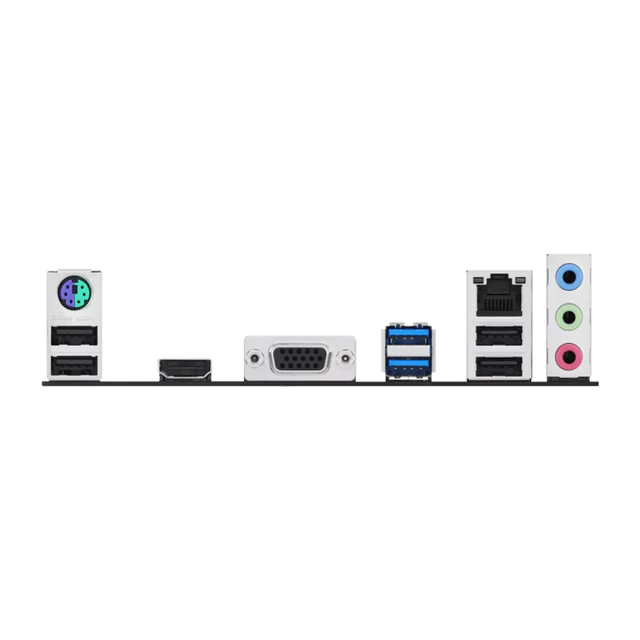

| USB Ports | 4 x USB 3.2 Gen 1, 6 x USB 2.0 |
| Graphics Output | HDMI, VGA |
| Networking | Realtek 1Gb Ethernet |
| ARGB Header | 3-pin ARGB for customizable lighting |
| Audio | Realtek ALC897 7.1-Channel Audio |
Key Features
- Intel 12th & 13th Gen Ready – Supports LGA 1700 processors for powerful computing.
- DDR5 Memory Support – Up to 64GB at 5200MHz (OC) for improved multitasking and gaming performance.
- PCIe 4.0 Expansion – Faster GPU and NVMe SSD speeds for enhanced system responsiveness.
- ARGB Lighting Header – Sync and control RGB effects with compatible components.
- Comprehensive Cooling – Includes VRM heatsinks and Fan Xpert 2+ for temperature management.
User Benefits
- Optimized Performance – DDR5 memory and PCIe 4.0 ensure smooth gaming and workload efficiency.
- Stable Power & Cooling – VRM heatsinks and Fan Xpert 2+ provide cooling under heavy loads.
- Customizable RGB Lighting – Sync ARGB components for a personalized aesthetic.
- Fast Connectivity – USB 3.2 and 1Gb Ethernet for seamless data transfers and online gaming.
Compatibility
- Supports Intel 12th & 13th Gen CPUs (Alder Lake & Raptor Lake).
- Compatible with DDR5 memory modules (5200MHz OC max).
- Works with PCIe 4.0 GPUs and NVMe SSDs for high-speed performance.
- Syncs with ASUS Aura ARGB components for customizable lighting effects.
Included Items

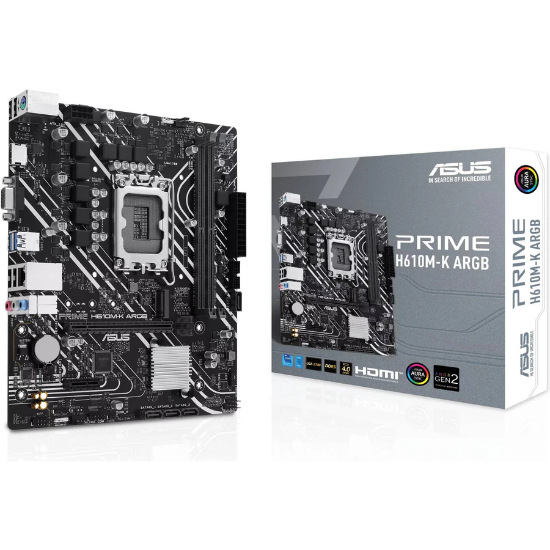

- Asus Prime H610M-K ARGB Motherboard
- I/O Shield
- SATA Cables
- Driver & Utility Disc
- Quick Installation Guide
