Description

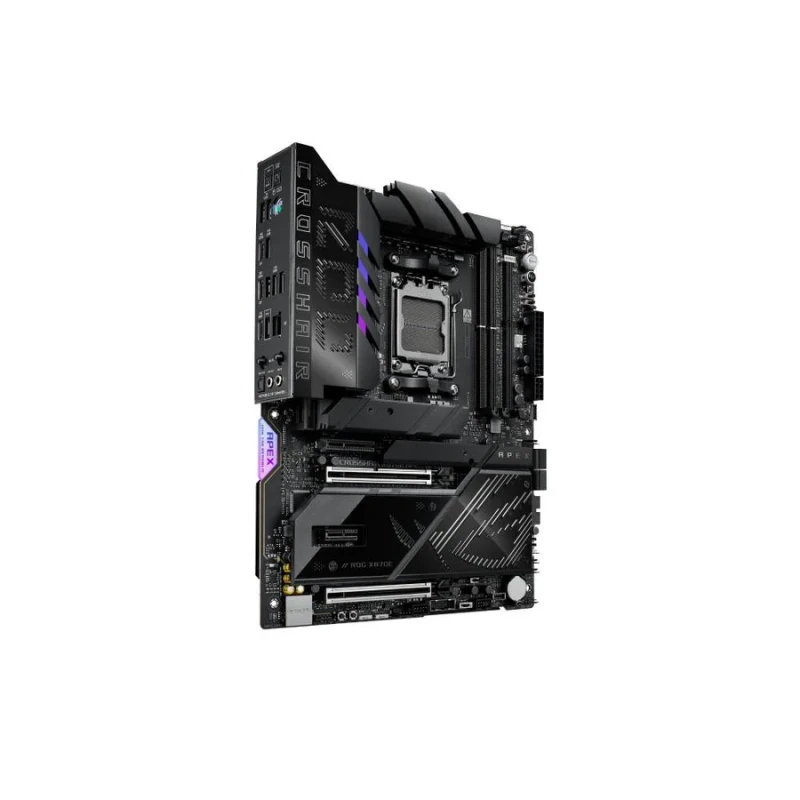

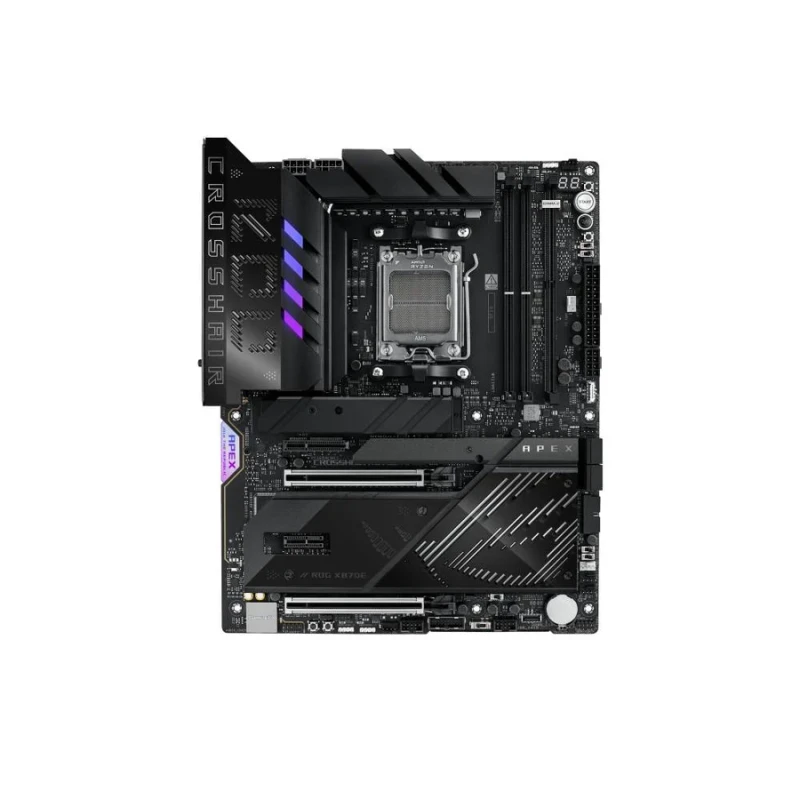

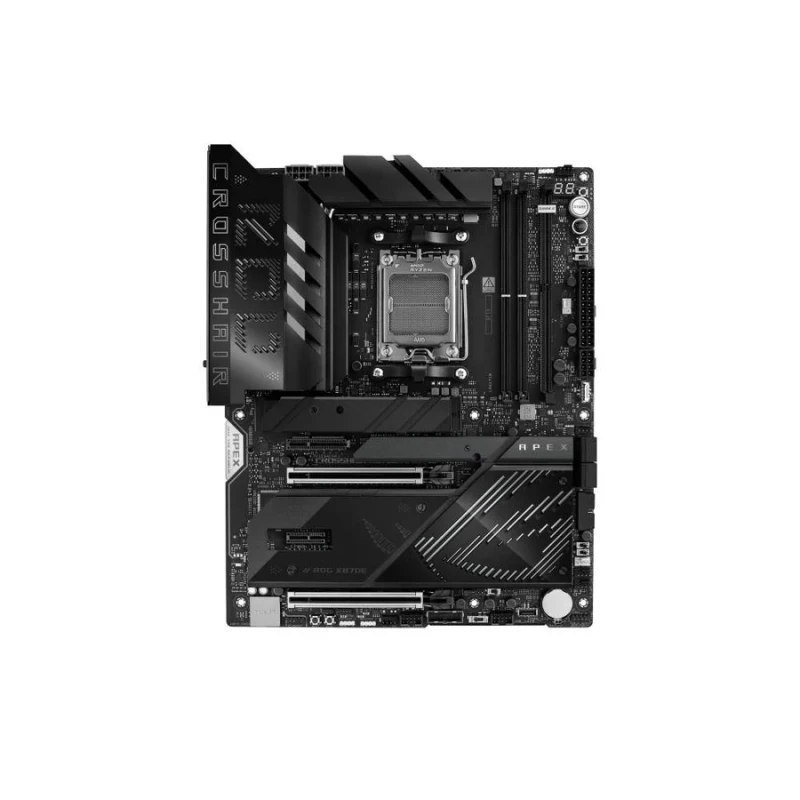

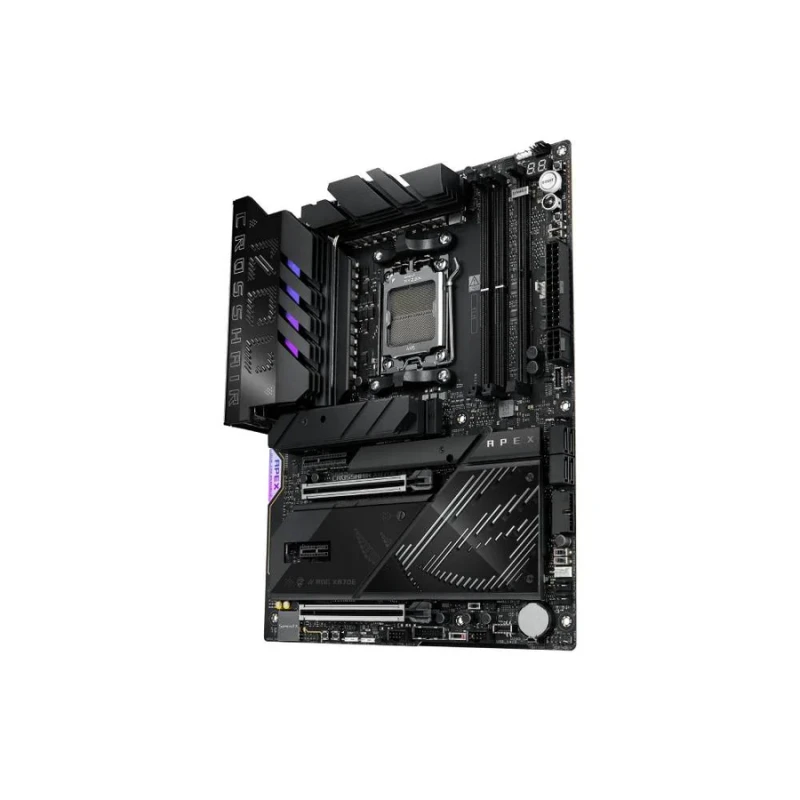

This high-end X870E motherboard supports AMD Ryzen™ 9000, 8000, and 7000 series desktop processors on the AM5 socket. It features PCIe 5.0 x16, five M.2 slots (up to PCIe 5.0), dual USB4, Wi-Fi 7, and full DDR5 OC support up to 9600+ MT/s. Built for enthusiasts, overclockers, and creators, it includes ROG tuning tools, a robust cooling system, and next-gen I/O for ultra-performance builds.
Key Features
- Compatible with AMD Ryzen™ 9000 / 8000 / 7000 CPUs (AM5 socket)
- PCIe 5.0 x16 GPU slot + 3× M.2 PCIe 5.0 slots (Ryzen 9000/7000 only)
- DDR5 support up to 9600+ MT/s (OC) with Ryzen 8000 processors
- Dual USB4 (40Gbps) ports with DP 1.4a output
- Realtek 5Gb LAN + Wi-Fi 7 and Bluetooth 5.4
- SupremeFX ALC4080 7.1 audio with S/PDIF out and premium caps
- 2× USB-C front panel connectors (1 with 60W PD/QC4+)
- Full overclocking suite: LN2 Mode, Retry, Safe Boot, ProbeIt
- ROG DIMM.2 included for 2 additional M.2 drives
Technical Specifications
| Feature | Details |
|---|---|
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series, AM5 |
| Chipset | AMD X870E |
| Memory Support | 2× DDR5 DIMMs, up to 128GB |
| PCIe Slots | 2× PCIe 5.0 x16 (x16 or x8/x8), 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 |
| M.2 Storage | 3× PCIe 5.0 M.2 (9000/7000 only), 2× PCIe 4.0 M.2 (via DIMM.2), 4× SATA |
| RAID Support | RAID 0/1/5/10 (varies by CPU generation) |
| Networking | Realtek 5Gb LAN + Wi-Fi 7 (2×2) + Bluetooth 5.4 |

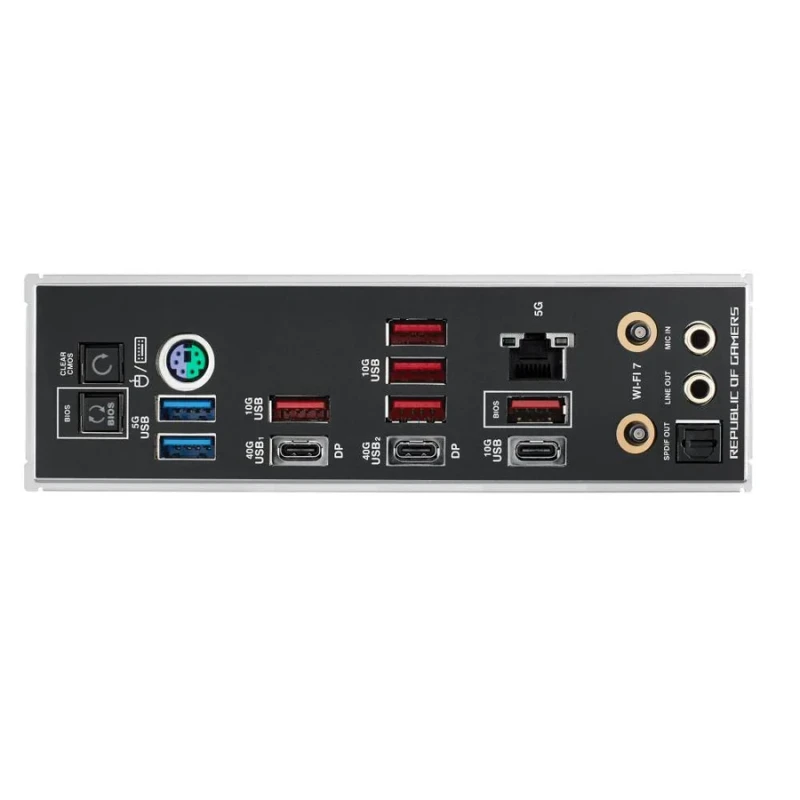

| Rear USB Ports | 2× USB4 (Type-C), 6× USB 10Gbps (5× A + 1× C), 2× USB 5Gbps (A) |
| Front USB Ports | 1× USB-C (20Gbps w/ 60W PD), 1× USB-C (20Gbps), 4× USB 5Gbps, 4× USB 2.0 |
| Audio | ROG SupremeFX ALC4080, 7.1ch, 32-bit/384kHz, Savitech AMP, optical out |
| RGB Headers | 3× Addressable Gen2 |
| Cooling Features | 6× Fan headers (CPU, AIO, Full-speed, W_PUMP+), M.2 & VRM heatsinks, backplate |
| Power Connectors | 24-pin ATX, 2× 8-pin CPU, 1× 8-pin PCIe |
| Form Factor | ATX (30.5 × 24.4 cm) |
