Description

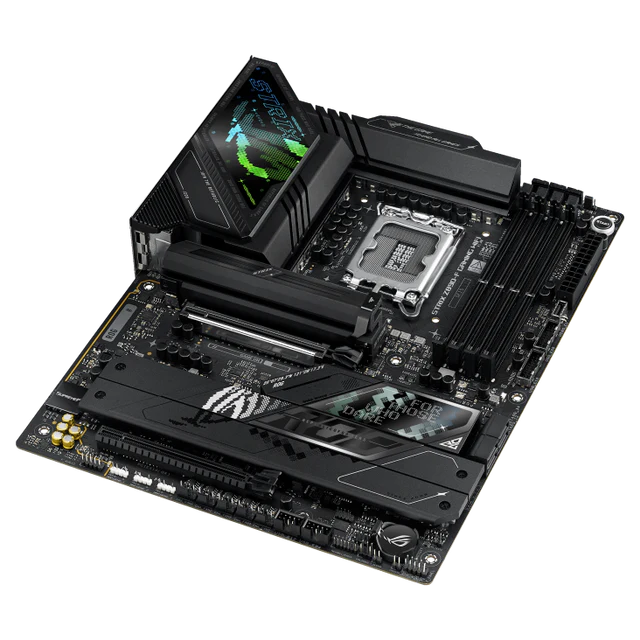

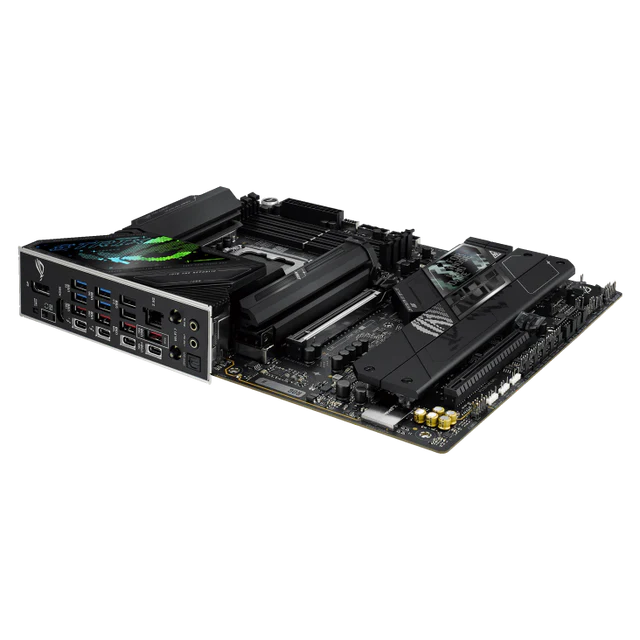

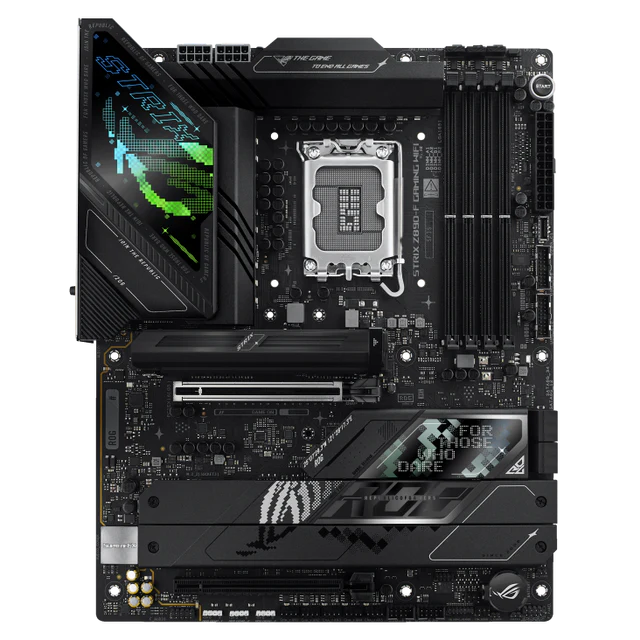

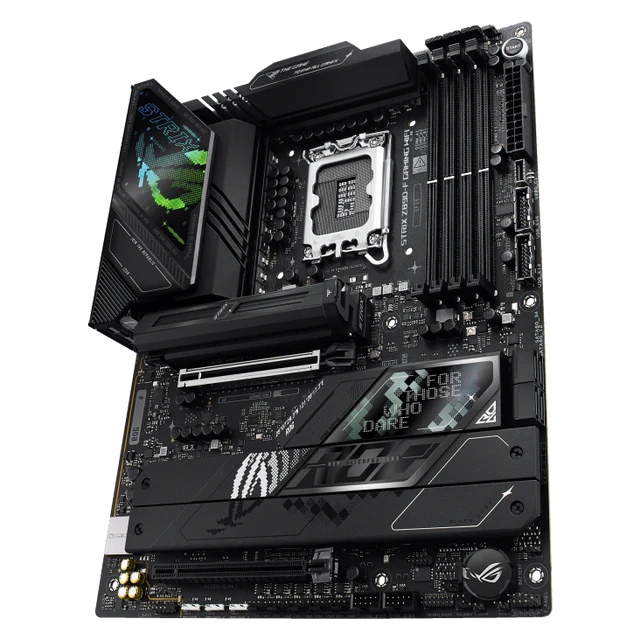

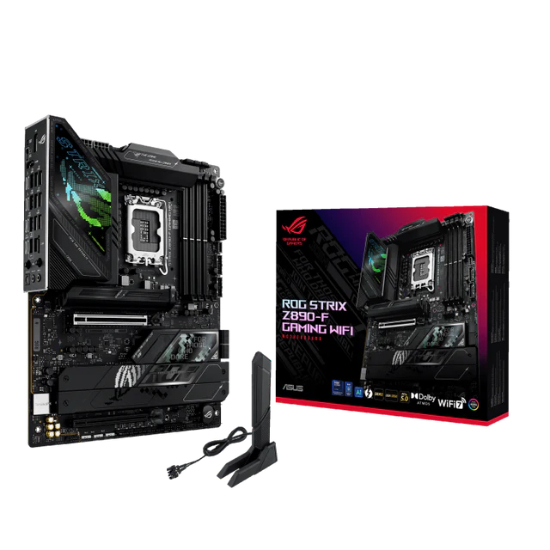

The ROG STRIX Z890-F GAMING WIFI is a performance-ready ATX motherboard designed for Intel Core Ultra Series 2 processors. It features DDR5 memory support up to 256GB, PCIe 5.0, Wi-Fi 7, and dual Thunderbolt 4 ports. This board targets high-end gaming and overclocking builds with extensive cooling support, advanced connectivity, and premium audio.
Key Features
- Compatible with Intel® Core™ Ultra (Series 2) on LGA1851 socket
- Supports DDR5 up to 256GB @ 9066+ MT/s (OC)
- PCIe 5.0 x16 GPU slot and 5× M.2 slots for ultra-fast storage
- Dual Thunderbolt™ 4 ports and HDMI/DisplayPort for video output
- Wi-Fi 7 and Intel® 2.5Gb LAN for modern networking
- SupremeFX 7.1 audio with ALC4080 codec and premium components
- ASUS Q-Design features for tool-less installation
- AURA Sync RGB and Gen2 ARGB headers
Technical Specifications
| Feature | Details |
|---|---|
| CPU Support | Intel® Core™ Ultra (Series 2), LGA1851 |
| Chipset | Intel® Z890 |
| Memory Support | 4× DDR5 DIMM slots, up to 256GB, 9066+MT/s (OC), XMP, AEMP III, DIMM Flex |
| Expansion Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode) |
| Storage | 5× M.2 (1× PCIe 5.0, 3× PCIe 4.0, 1× PCIe 4.0 + SATA), 4× SATA 6Gb/s |
| Integrated Graphics | 1× HDMI 2.1, 1× DisplayPort 1.4, 2× Thunderbolt 4 (DisplayPort via Type-C) |
| LAN | Intel® 2.5Gb Ethernet with LANGuard |

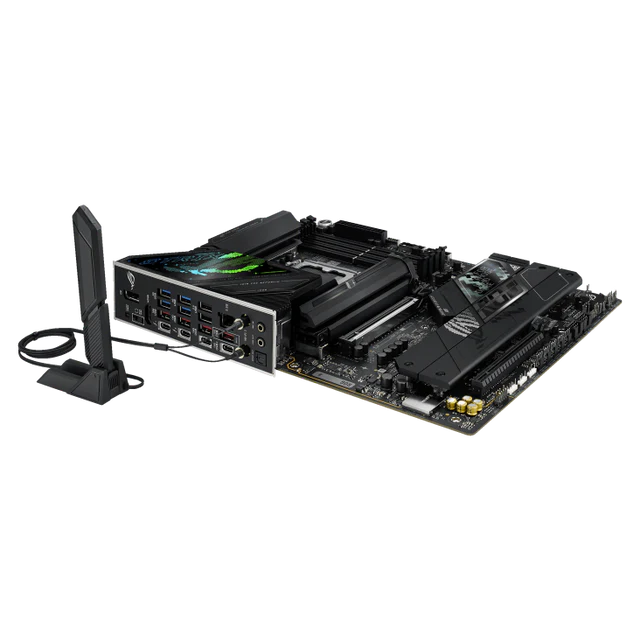

| Wireless & BT | Wi-Fi 7 (2×2, 2.4/5/6GHz, 320MHz) & Bluetooth 5.4 |

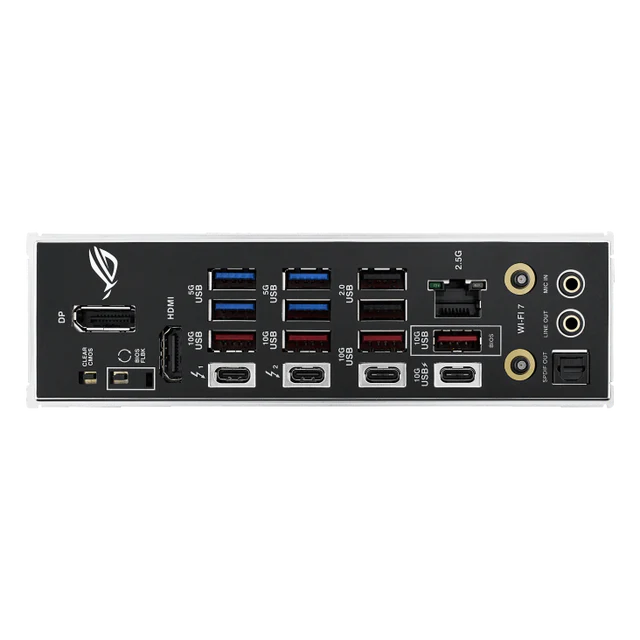

| Rear USB | 2× TB4 (Type-C), 6× USB 10Gbps (4× A + 2× C), 4× USB 5Gbps (A), 2× USB 2.0 |
| Front USB | 1× USB 20Gbps (C), 4× USB 5Gbps, 4× USB 2.0 |
| Audio | SupremeFX ALC4080, 7.1ch, 120 dB SNR, Savitech AMP, S/PDIF, gold-plated jacks |
| Cooling Headers | 1× CPU, 1× CPU OPT, 1× AIO, 5× Chassis Fan (4-pin) |
| Power Connectors | 24-pin ATX, 2× 8-pin CPU 12V |
| RGB Headers | 3× Addressable Gen2 ARGB |
| Special Features | BIOS FlashBack™, Clear CMOS, Q-LED, Q-Latch, Q-DIMM, Start Button, FlexKey |
| Form Factor | ATX (30.5 × 24.4 cm) |
