Product Description

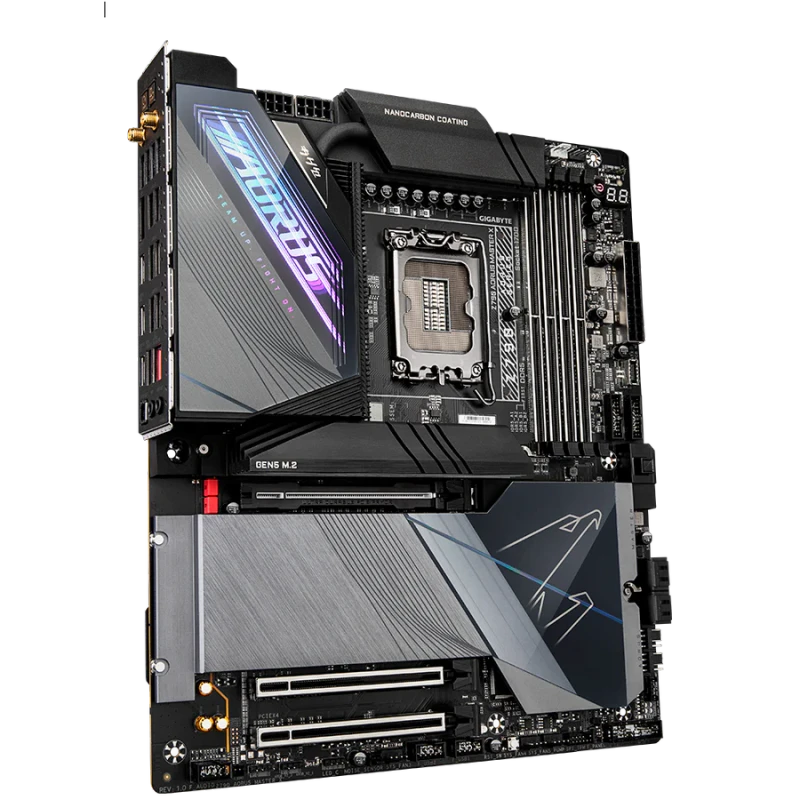

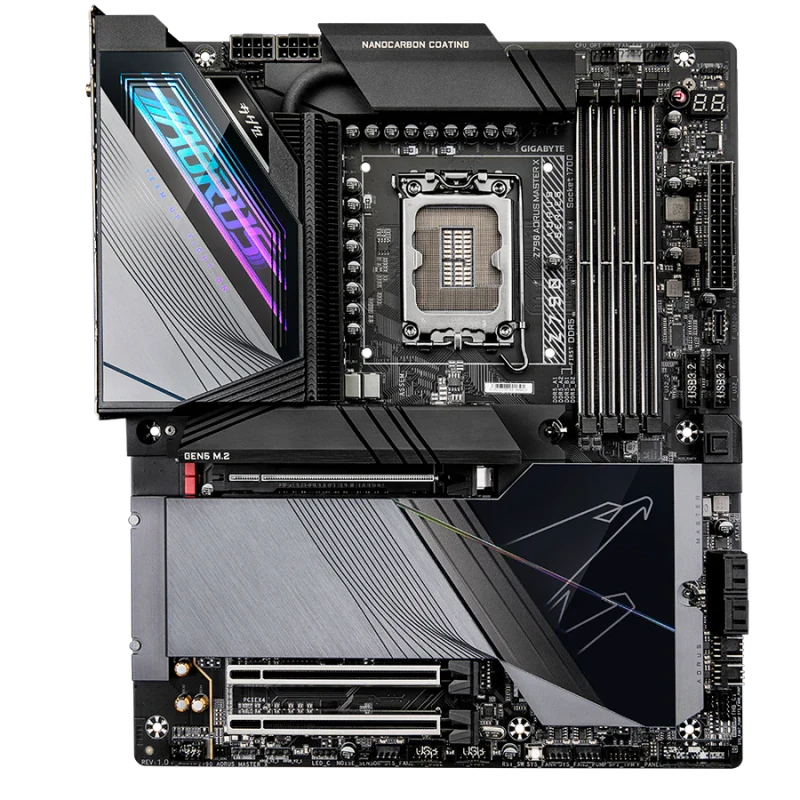

The AORUS Z790 MASTER X is a high-end E-ATX motherboard built for Intel’s 12th, 13th, and 14th Gen processors on the LGA1700 socket. It supports DDR5 memory, PCIe 5.0, and offers advanced power delivery, thermal design, and ultra-fast connectivity including Wi-Fi 7 and 10GbE LAN. Designed for extreme overclockers and premium PC builds.
Key Features
- LGA1700 socket supports Intel 12th–14th Gen CPUs
- 20+1+2 phase digital VRM with 105A Smart Power Stages
- Supports up to 128GB DDR5 memory, up to 8266MT/s (OC)
- 1× PCIe 5.0 x16 slot for next-gen GPUs
- 5× M.2 slots (1× PCIe 5.0, 4× PCIe 4.0) with tool-free EZ-Latch Plus
- Advanced thermal design with full-cover VRM heatsinks and large M.2 heatsinks
- Built-in Wi-Fi 7 and 10GbE LAN

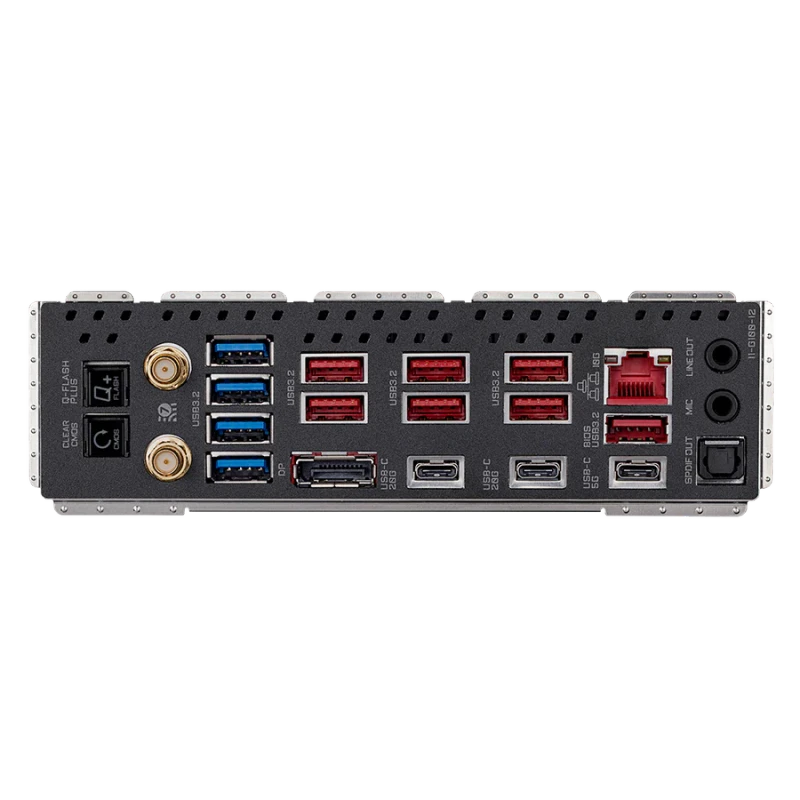

- Rear I/O includes dual USB-C 20Gbps, multiple USB 3.2 Gen 2, HDMI, DisplayPort, audio jacks
- Realtek ALC1220 audio with premium capacitors and DTS:X Ultra
- RGB Fusion lighting and Q-Flash Plus BIOS update
- Smart Fan 6 with hybrid fan headers and temperature sensors
- User-friendly UEFI BIOS with Quick Access interface
Technical Specifications
| Feature | Specification |
|---|---|
| Form Factor | E-ATX |
| CPU Socket | LGA1700 |
| Chipset | Intel Z790 |
| Memory Support | 4× DDR5 DIMM, up to 128GB, 8266MT/s OC |
| Power Design | 20+1+2 phases, 105A SPS |
| PCIe Slots | 1× PCIe 5.0 x16 |
| M.2 Slots | 5 total (1× PCIe 5.0, 4× PCIe 4.0) |
| SATA Ports | 6× SATA 6Gb/s |
| USB Ports (Rear) | 2× USB-C 20Gbps, USB 3.2 Gen 2, USB 2.0 |
| Networking | Wi-Fi 7, 10GbE LAN |
| Audio | Realtek ALC1220, DTS:X Ultra |
| Internal Headers | USB-C, RGB/ARGB, multiple fan headers |
| Cooling Features | VRM Armor, M.2 heatsinks, Smart Fan 6 |
| BIOS | UEFI, Q-Flash Plus, Clear CMOS |
| RGB Support | RGB Fusion |
