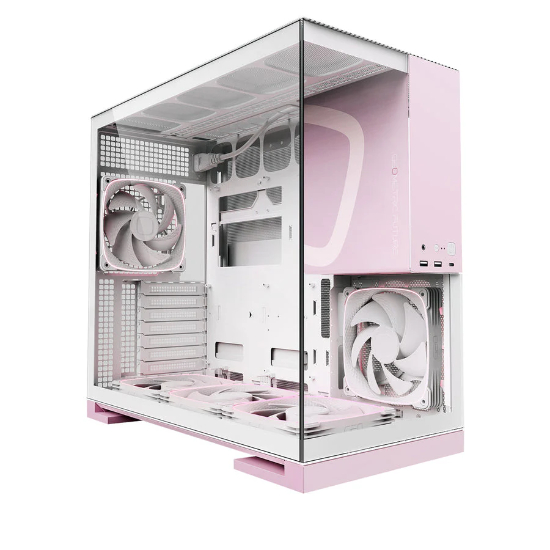

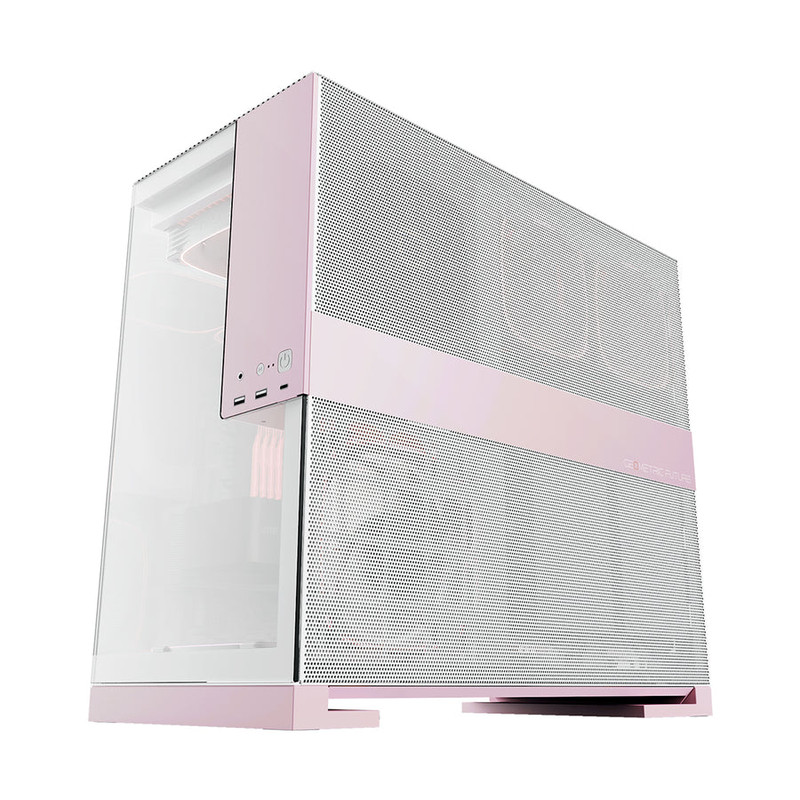

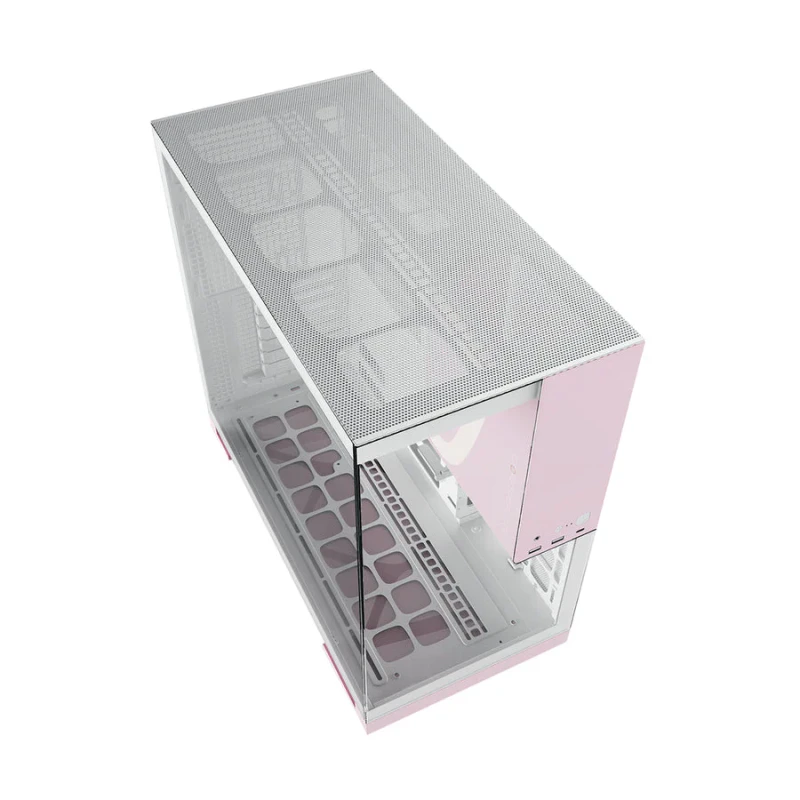

The Geometric Future Model 5 is a premium mid-tower PC case built with high-grade steel and 4mm tempered glass, offering both strength and aesthetics for professional gaming or workstation setups.
It supports E-ATX, ATX, M-ATX, and ITX motherboards, making it suitable for a wide range of configurations.
Designed for maximum cooling efficiency, it accommodates up to 10 fans and large liquid-cooling radiators up to 420mm, providing excellent airflow and temperature control.
With its modern I/O panel featuring USB-C 20Gbps, and a spacious interior supporting large GPUs and power supplies, this case delivers both performance and visual appeal.

Key Features

•  5 Pre-Installed Fans: Ensures strong airflow for stable thermal performance.
•  Premium Build Quality: 0.8mm–1.2mm thick steel frame with 4mm tempered glass panel.
•  Motherboard Compatibility: Supports E-ATX, ATX, M-ATX, and ITX.
•  Advanced Cooling Options: Supports up to 10 fans and 420mm radiators for water cooling.
•  Modern I/O Connectivity: Dual USB 3.0 ports, USB-C 20Gbps, and HD Audio combo jack.
•  GPU Flexibility: Horizontal or vertical GPU mounting with lengths up to 460mm.
•  Optimized Airflow Layout: Top, bottom, and rear fan support for efficient cooling.
•  Compact but Spacious Design: Perfect balance of airflow, cable management, and hardware space.

Technical Details

•  Case Type: Mid Tower
•  Material: Steel (0.8mm–1.2mm thick), Tempered Glass (4mm thick)
•  Dimensions (DxWxH): 480 × 242 × 440 mm (18.9″ × 9.5″ × 17.3″)
•  Motherboard Compatibility: E-ATX (12″x11″), ATX, M-ATX, ITX
•  Drive Bays: Maximum 2×3.5″ or 2×2.5″
•  Power Supply Compatibility: ATX (Length <160mm, full modular recommended)
•  Expansion Slots:
  • Horizontal: PCI-E x7 (GPU length <460mm, width <180mm)
  • Vertical: PCI-E x4 (GPU length <460mm, width <160mm, thickness <110mm)
• Cooling Support:
•  Top: 3×120mm / 3×140mm fans, supports 360mm / 420mm radiators
•  Rear: 1×120mm / 1×140mm fan, supports 120mm / 140mm radiator
•  Right Front: 1×120mm / 1×140mm / 1×160mm fan
•  Motherboard Back: 2×120mm fans
•  Bottom: 3×120mm / 3×140mm fans, supports 360mm radiator
•  CPU Cooler Height Limit: <180mm
•  I/O Ports:
  • 2× USB 3.0
  • 1× Type-C (20Gbps)
  • 1× HD Audio (CTIA Standard – Headset & Mic)

User Benefits

•  Excellent Cooling Performance: Multiple fan and radiator support ensures stable thermal performance under heavy loads.
•  Modern Build Aesthetics: Clean lines and tempered glass side for a premium gaming look.
•  High Compatibility: Supports full-size components including long GPUs and large coolers.
•  Future-Ready Connectivity: Type-C 20Gbps for faster data transfer and device charging.
•  Efficient Cable Management: Optimized interior space for organized builds and airflow.

Included Items

• Geometric Future Model 5 Mid Tower Glass Case
• Pre-installed Fan(s)
• Mounting Screws and Accessories
• Dust Filters
• Quick Installation Guide
