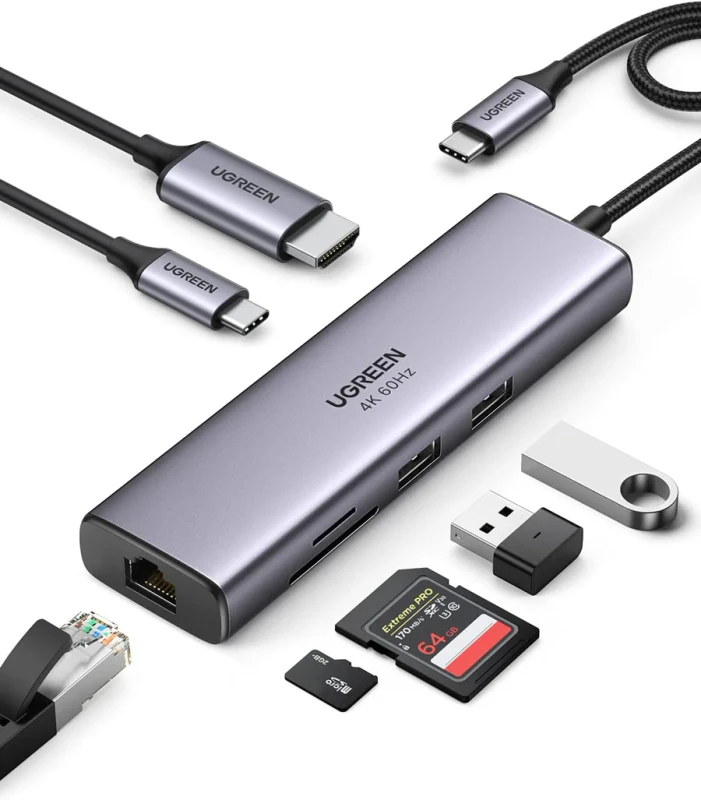

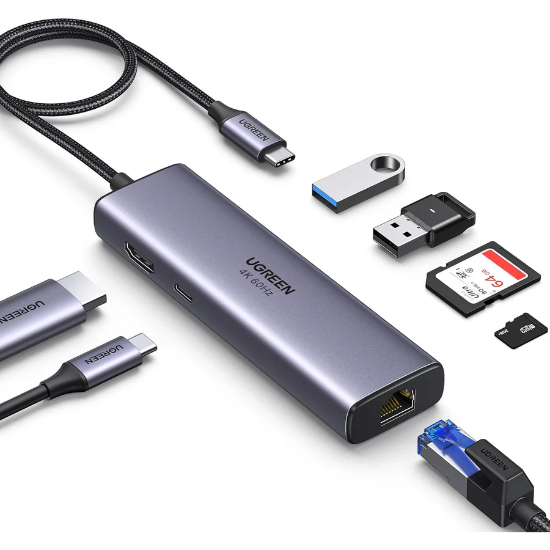

The UGREEN CM512 is a versatile 7-in-1 USB-C hub designed to expand the connectivity options of your USB-C-enabled devices. It provides multiple ports, including HDMI, USB 3.0, Ethernet, SD/TF card readers, and a USB-C Power Delivery (PD) port, facilitating efficient multitasking and enhanced productivity.

Technical Specifications

• Model: CM512

• Part Number: 90568

• Input: USB Type-C (male)

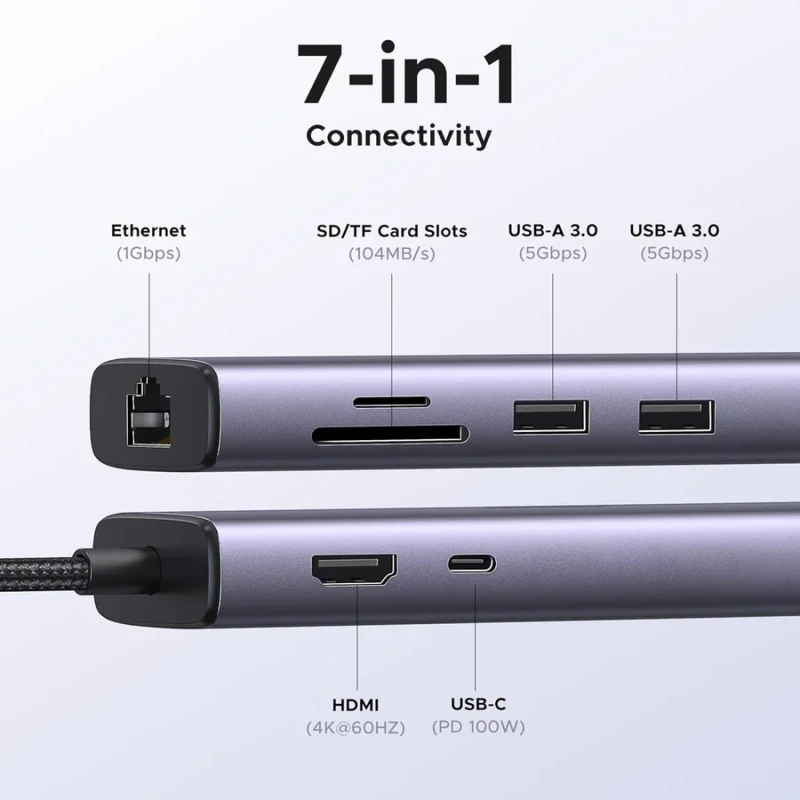

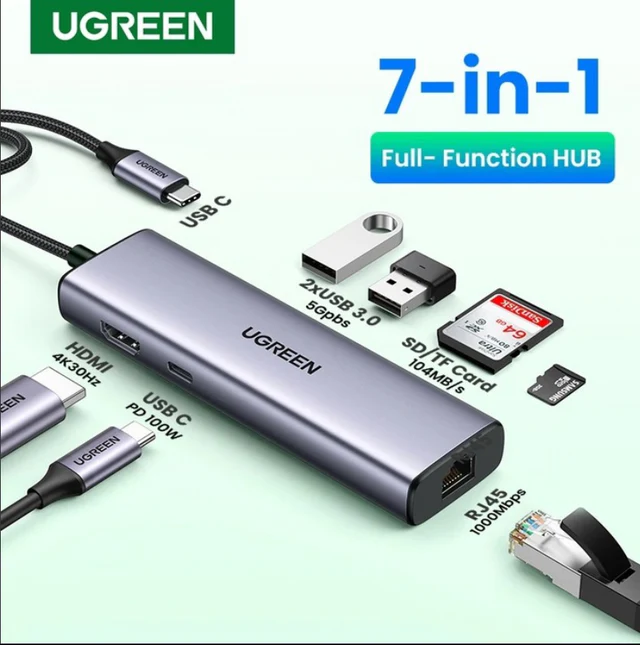

• Output Ports:

  • 1 × HDMI 2.0 (female) supporting up to 4K@30Hz resolution

  • 2 × USB 3.0 Type-A (female) with data transfer speeds up to 5 Gbps

  • 1 × RJ-45 Ethernet port supporting 10/100/1000 Mbps

  • 1 × SD card reader

  • 1 × TF (MicroSD) card reader

  • 1 × USB-C PD port supporting up to 100W power delivery

• Material: Aluminum alloy housing

• Color: Gray

• Dimensions: Approximately 198 × 111 × 19 mm

• Weight: Approximately 112 grams

• Compatibility: Compatible with devices featuring USB-C ports supporting DisplayPort Alt Mode, including MacBook Pro/Air, iPad Pro, Dell XPS, Lenovo ThinkPad, HP Spectre, and more.

Key Features

• 4K HDMI Output: Mirror or extend your screen with the HDMI port, supporting resolutions up to 4K@30Hz, ideal for presentations, streaming, or gaming.

• High-Speed Data Transfer: Two USB 3.0 ports enable data transfer speeds up to 5 Gbps, allowing quick transfer of large files.

• Gigabit Ethernet: The RJ-45 port provides a stable wired network connection with speeds up to 1 Gbps, ensuring reliable internet access.

• SD/TF Card Readers: Supports simultaneous reading and writing of SD and MicroSD cards, facilitating easy access to multimedia files.

• 100W Power Delivery: The USB-C PD port allows pass-through charging up to 100W, enabling you to charge your laptop or other devices while using the hub.

• Plug and Play: No additional drivers or software required; supports hot-swapping for easy connectivity.

User Benefits

• Enhanced Connectivity: Expands a single USB-C port into multiple ports, reducing the need for multiple adapters and streamlining your workspace.

• Efficient Multitasking: Connect multiple peripherals simultaneously, such as external monitors, USB drives, and network cables, enhancing productivity.

• Portable Design: Compact and lightweight aluminum alloy construction makes it easy to carry, suitable for travel or remote work setups.

• Universal Compatibility: Works seamlessly with a wide range of USB-C devices across various operating systems, including macOS, Windows, iOS, Android, and Linux.
